Travel inspection - AP00.20-P-0080B

MODEL 451, 453

MODIFICATION NOTES

21.5.15

Reference validities for model 451 adapted

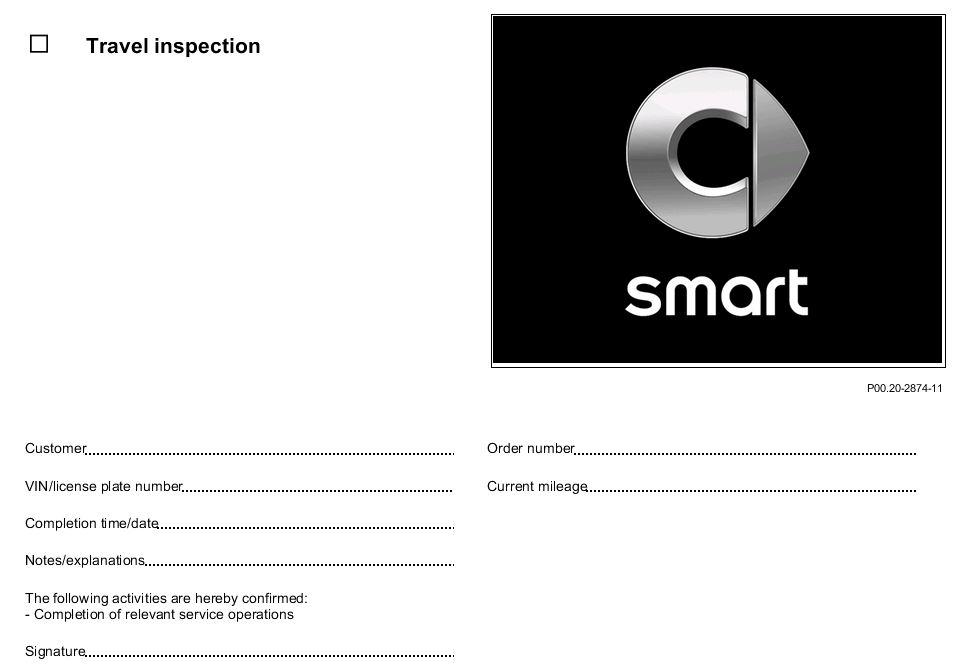

Fig 1: Travel Inspection Maintenance Sheet

Courtesy of MERCEDES-BENZ USA

		Input condition not OK:	ⓧ
Completed


□	Brake system Perform brake test and enter the result in the table	...	◦	AP42.00-P-4290MCC
□	Vehicle exterior Check condition of windshield	...	◦	AP67.10-P-6750A
□	Check condition of wiper blades	...	◦
		Model 451, 453
		Model 453		AP82.30-P-8253G
□	Front flap Brake system: Check fluid level	...	◦	AP42.10-P-4247US
□	Check coolant level	...	◦
		Model 451.3/4 with engine 132.9, 660.9		AP20.00-P-2010MCC
			Model 451.391/491 with engine 780.009	AP20.00-P-2010MEV
			Model 453	AP20.30-P-2050S
□	Windshield washer system: Check/correct fluid level	... Use summer/winter cleaner depending on season.		AP82.35-P-8249US
□	Battery Check condition of battery	...	On customer request only Recommended in winter months for batteries aged over 24 months. Invoice battery condition check subject to separate repair order.	AP54.10-P-5449US
□	Vehicle front end, vehicle rear end Check exterior lights for proper operation	...	◦
		Model 451.3/4		AP82.10-P-8251MCC
		Model 453		AP82.10-P-8252EW
□	Vehicle interior Check lamps, warning lamps, indicator lamps and interior illumination	...	◦
		Model 451.3/4		AP54.30-P-5452MCC
		Model 453		AP54.30-P-5453S
□	Check air conditioning for proper operation	...	◦
□	Check function of windshield wipers and windshield washer system	...	◦	AP82.35-P-8252MCC
□	Check TIREFIT tire sealant	... Enter TIREFIT expiration date here: If the TIREFIT expiration date has been reached: ↓ Replace TIREFIT, invoice as additional operation.	◦	AP40.10-P-4054MCC
□	Engine compartment Check/correct engine oil level	... Engine 132, 281, 660	◦	AP18.00-P-1811MS
□	Check V-belt in visible area	...	◦
□	Underside of vehicle Check condition of vehicle underside	...	◦	AP60.00-P-0051S
□	Tires, wheels Check tires for damage and crack formations	...	◦
		Model 451.3/4		AP40.10-P-4051MCC
		Model 453		AP40.10-P-4051EW
□	Correct tire pressure and enter set tire pressure in the table	...	◦	AP40.15-P-4061MCC

BRAKE VALUES

	Left	Right
Front
Rear
Parking brake

TIRE CONDITION

	Right front	Left front	Right rear	Left rear
Condition OK
Condition NOK

SET TIRE PRESSURE IN BAR OR PSI

	Front axle	Rear axle
bar/psi
