Seal guide tube - AR18.40-P-3550OGE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212
Illustrated on model 212
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 1 | Remove engine trim panel | ||
| 2 | Remove left air filter housing | AR09.10-P-1150SXI | |
| 3 | Remove exhaust manifold on the left | AR14.10-P-3915OGE | |
| 4 | Remove bottom sections of soundproofing | AR94.30-P-5300EW | |
| 5 | Drain engine oil | ||
| Engine oil and filter change | AP18.00-P-0101EWO | ||
| 6 | Disconnect electrical line from fuel lien and remove fuel lines | Only with 4MATIC |
|
| 7 | Press fuel lines with attached lines to one side and remove bolts (2) | ||
| *BA18.40-P-1001-01M | |||

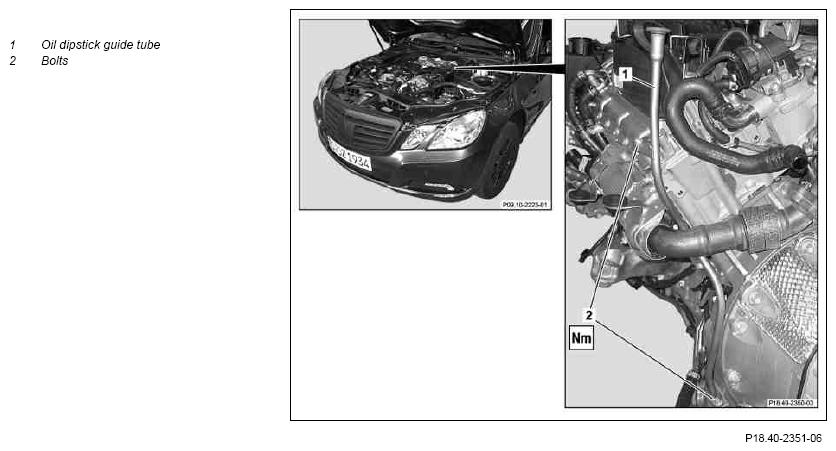

| 8 | Lift oil dipstick guide tube (1) up and out | ||
| 9 | Install in the reverse order | ||
| Checking | |||
| 10 | Check engine oil level | AR18.00-P-3035-01SXI | |
| *BF18.00-P-1001-01S | |||
| 11 | Check engine for leaks |
OIL LEVEL, OIL PRESSURE SENSOR
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA18.40-P-1001-01M | Bolt for oil dipstick guide tube | Nm | 11 |
ENGINE LUBRICATION SYSTEM
| Number | Designation | Engine 642.826/830/832/834/836/838/850/852/853/854/856/858/862/868 with particulate filter | ||
|---|---|---|---|---|
| BF18.00-P-1001-01S | Engine oil | Filling capacity (oil and filter change) | Liters | 8.0 |
| Specifications for Operating Fluids | Specification | Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 | ||
| Specification | Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |||
| Specification | Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |||
