Replace the oil pump chain - AR18.10-P-2140OM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642
| Removing | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove oil pump | Model 164, 251 | AR18.10-P-6020GZB |
| Model 166 | AR18.10-P-6020OGR | ||
| Model 203, 209 | AR18.10-P-6020PI | ||
| Model 204 | AR18.10-P-6020CO | ||
| Model 207, 212, 218, 221 | AR18.10-P-6020SXI | ||
| Model 211 | AR18.10-P-6020TI | ||
| Model 219.322 | AR18.10-P-6020TQ | ||
| Model 461, 463 | AR18.10-P-6020GY | ||

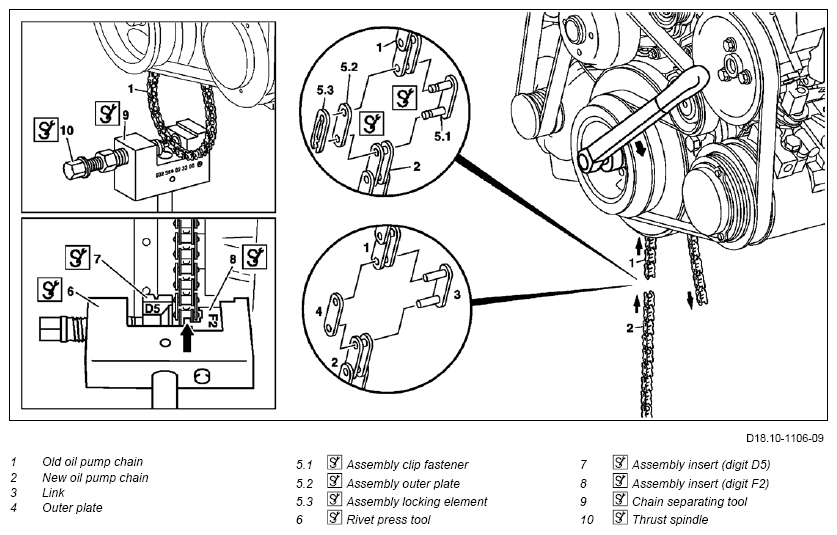

| 2 | Disconnect old pump chain (1) | AR18.10-P-2140-01OM | |
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Install | |||
| 3 | Draw in new oil pump chain (2) and rivet | AR18.10-P-2140-02OM | |
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 4 | Install oil pump | Model 164, 251 | AR18.10-P-6020GZB |
| Model 166 | AR18.10-P-6020OGR | ||
| Model 203, 209 | AR18.10-P-6020PI | ||
| Model 204 | AR18.10-P-6020CO | ||
| Model 207, 212, 218, 221 | AR18.10-P-6020SXI | ||
| Model 211 | AR18.10-P-6020TI | ||
| Model 219.322 | AR18.10-P-6020TQ | ||
| Model 461, 463 | AR18.10-P-6020GY |
