Remove/install oil pump - AR18.10-P-6020EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273 in MODEL 212
| Remove/install | |||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| 1 | Remove oil pan | Engine 272 | AR01.45-P-7500EWD |
| Engine 273 | AR01.45-P-7500EW | ||

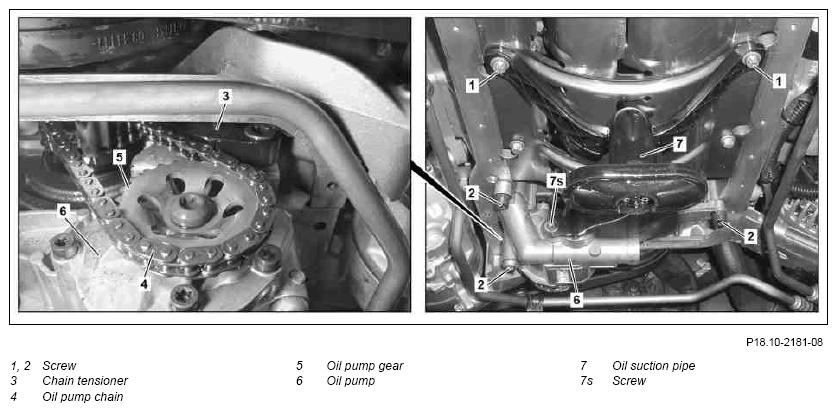

| 2 | Remove bolts (1, 2) | *BA18.10-P-1005-01B | |
| *BA18.10-P-1008-01B | |||
| 3 | Press chain tensioner (3) to the back, remove oil pump chain (4) from oil pump gear (5) and take out oil pump (6) together with oil suction pipe (7) | ||

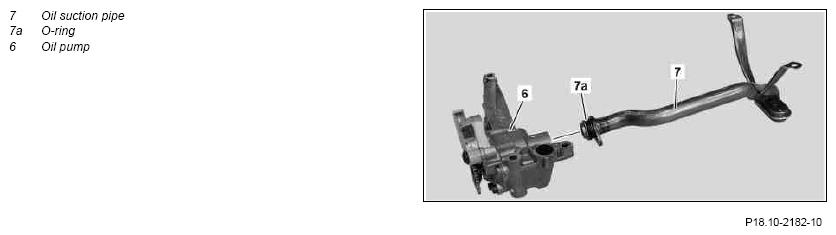

| 4 | Remove bolt (7s) and detach oil suction pipe (7) from oil pump (6) | If necessary |
|
| *BA18.10-P-1004-01B | |||
| 5 | Install in the reverse order | ||
| Checking | |||
| 6 | Check engine oil level and correct | ||
| Engine oil and filter change | AP18.00-P-0101EW | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Conduct engine test run and check engine for leaks |
OIL PUMP
| Number | Designation | Engine 272 | Engine 273 | ||
|---|---|---|---|---|---|
| BA18.10-P-1004-01B | Bolt, oil suction pipe to oil pump. | M6X16 | Nm | 9 | 9 |
| BA18.10-P-1005-01B | Oil suction pipe at crankcase | Nm | 9 | 9 | |
| BA18.10-P-1008-01B | Bolt, oil pump to crankcase | Stage 1 | Nm | 5 | 5 |
| Stage 2 | Nm | 20 | 20 | ||
