Remove/install oil level sensor - AR18.40-P-5111ELB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 157 in MODELS 166, 212, 218

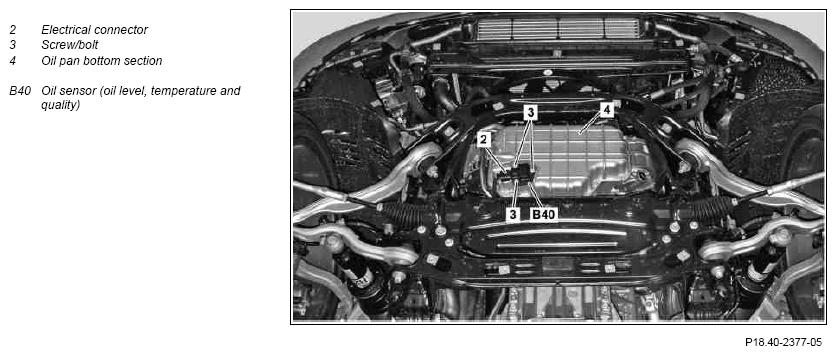

Illustrated on model 216
| Remove/install | |||
| 1 | Remove bottom engine compartment paneling | ||
| Model 166.0 | AR61.30-P-1001GQ | ||
| Model 212, 218 | AR61.20-P-1105EW | ||
| 2 | Drain engine oil and catch in a suitable container | Model 166 with engine 157 | AP18.00-P-0101GQ |
| Model 212, 218 with engine 157 | AP18.00-P-0101EW | ||
| 3 | Disconnect electrical connector (2) from oil sensor (B40) | ||
| 4 | Remove screw/bolts (3) and oil sensor (B40) from the oil pan bottom section (4) | *BA18.40-P-1004-02C | |
| Clean | |||
| 5 | Clean sealing surface on the oil pan bottom section (4) | ||
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| Loctite 7063 cleaning spray (150 ml) | *BR00.45-Z-1046-04A | ||
| 6 | Install in the reverse order | ||
| Checking | |||
| 7 | Check engine oil level; correct if necessary | Model 166 with engine 157 | AP18.00-P-0101GQ |
| Model 212, 218 with engine 157 | AP18.00-P-0101EW | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run, checking the engine for proper operation and leaks |
OIL SENSOR
| Number | Designation | Engine 157 | |
|---|---|---|---|
| BA18.40-P-1004-02C | Screw/bolt, fill level sensor to oil pan bottom section | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1038-04A | Loctite 7200 | Henkel Loctite Deutschland GmbH |
| BR00.45-Z-1046-04A | Loctite 7063 cleaning spray (150 ml) | A 001 986 71 71 10 |
