Trailer coupling socket wiring harness, removal and installation - AR31.19-P-1400EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/2 with CODE 550 (Trailer coupling)

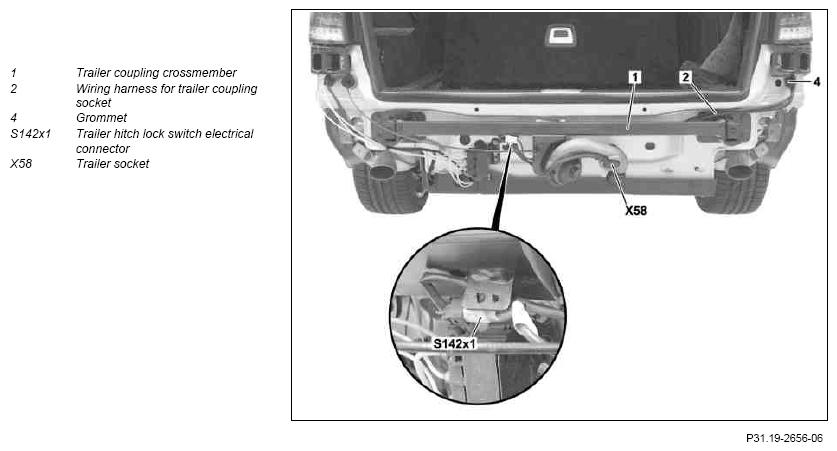

Shown on model 212.2
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Switch off all electrical consumers and the ignition | ||
| 2 | Remove rear bumper | AR88.20-P-2200EW | |
| 3 | Remove impact absorber from trailer hitch crossmember (1) | ||
| 4 | Unlock trailer hitch ball neck | ||
| 5 | Open cover in the lining on the right-hand side of the trunk or load compartment | ||
| 6 | Detach trailer socket (X58) from ball neck | AR31.19-P-1350EW | |
| 7 | Disconnect electrical connection at trailer hitch lock switch (S142x1) | ||
| 8 | Disconnect trailer socket connector (5) and trailer hitch electrical connection (X52) | ||
| 9 | Remove grommet (4) from the rear center section and lead trailer hitch socket wiring harness (2) from the vehicle interior outwards | ||
| 10 | Loosen trailer hitch socket wiring harness (2) from crossmember | ||
| 11 | Lead trailer hitch socket wiring harness (2) through the eye on the ball neck | ||
| 12 | Install in the reverse order | ||
| Check | |||
| 13 | Perform function test of light signals at trailer hitch socket |
