Remove/install expansion reservoir - AR20.30-P-4950CMG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 204, 212

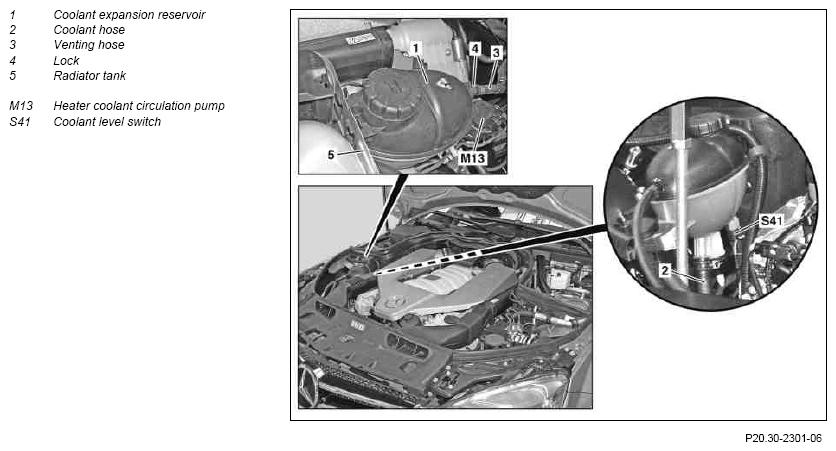

Fig 1: Expansion Reservoir Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Clamp off coolant hose (2)
2	Disconnect electrical connector at switch (S41)
3	Unscrew cap on expansion reservoir (1) and suction off coolant		Fig 2
4	Remove circulation pump (M13) at expansion reservoir (1)	When replacing the expansion reservoir (1).
5	Release lock (4) and pull out bleed hose (3) from expansion reservoir (1)	Install new O-ring.
6	Remove coolant hose (2) on expansion reservoir (1)	Check hose clamp for damage and replace if necessary.
7	Unclip and lift out expansion reservoir (1) from right radiator tank (5)	Moisten rubber mount with lubricant paste. Ensure correct seating of expansion reservoir (1).
7		Lubricant paste	*BR00.45-Z-1002-06A
8	Remove switch (S41) at expansion reservoir (1)	When replacing the expansion reservoir (1). To do this, turn switch (S41) by 90° to the left and pull out of expansion reservoir (1).
9	Install in the reverse order
	Checking
10	Check coolant level and correct if necessary
	Notes on coolant level		AH20.00-P-1142-01CW
11	Inspecting cooling system for leaks		AR20.00-P-1010CMG
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Conduct engine test run and check engine for leaks

Fig 2: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
