Remove/install stabilizer bar on front axle - AR32.20-P-0300EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

Shown on model 212

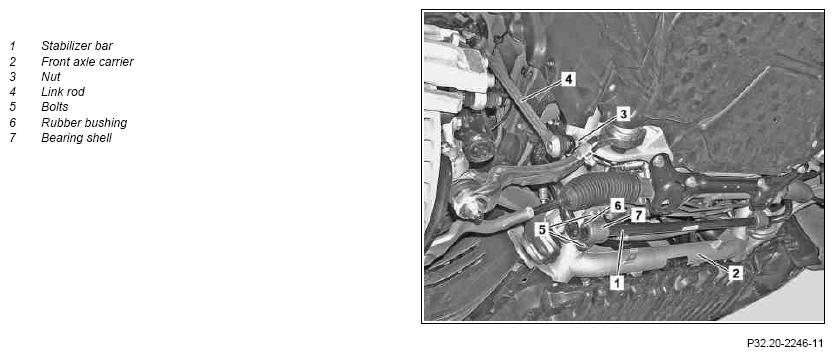

Fig 1: Stabilizer Bar On Front Axle Install/Remove Components - Shown On Model 212
G09976062Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
    NOTES When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the of the parts will be reduced.
    INSTALLATION IMPORTANT Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition.
1.1 Remove center section of the lower engine compartment paneling Vehicles with gasoline engine AR61.20-P-1105EW
1.2 Remove center bottom section of soundproofing Vehicles with diesel engine AR94.30-P-5300EW
2 Remove cover panel from rack-and-pinion steering Model 218
3 Remove nut (3) on both sides and push link rods (4) out of torsion bar (1) INSPECT Check rubber boots of link rods (4) for damage and replace link rods (4) if necessary.
IMPORTANT When unscrewing the nuts (3) counterhold at the spherical bolts with interior torx.

TORQUE SPECIFICATION *BA32.20-P-1001-02P
4 Remove retaining plate from rack-and-pinion steering Model 212.077/277
TORQUE SPECIFICATION Fasten rack-and-pinion steering using cable ties onto the front axle carrier.
INSTALLATION IMPORTANT Replace bolts and nuts.

TORQUE SPECIFICATION *BA46.20-P-1001-01N
TORQUE SPECIFICATION *BA46.20-P-1002-01N
5 Remove bolts (5) on front axle carrier (2) and remove torsion bar (1) INSPECT Check rubber mount (6) and bearing shells (7) for damage and wear and replace torsion bar (1) if necessary.
IMPORTANT The rubber mount (6) and bearing shells (7) are vulcanized to the torsion bar (1).

TORQUE SPECIFICATION *BA32.20-P-1003-02P
6 Install in the reverse order
FRONT AXLE STABILIZER BAR

Number Designation Model 212 Model 218
BA32.20-P-1001-02P Nut, link rod to stabilizer bar Nm 98 98
BA32.20-P-1003-02P Bolt, torsion bar to front axle carrier Nm 30 30
STEERING GEAR

Number Designation Model 212 without 4-MATIC
BA46.20-P-1001-01N Fastening for rack-and-pinion steering to front axle carrier Stage 1 Nm 70
Stage 2 ∠° 90
BA46.20-P-1002-01N Bolt, retaining plate of rack-and-pinion steering to front axle carrier Nm 110
