Remove/install refrigerant compressor - AR83.55-P-5300EH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651.9 in MODEL 212.098/298
| Remove/install | |||
| 1 | Perform disable/initial startup for high-voltage on-board electrical system | AR54.10-P-1150EH | |
| 2 | Drain air conditioning system | AR83.30-P-1760CW | |

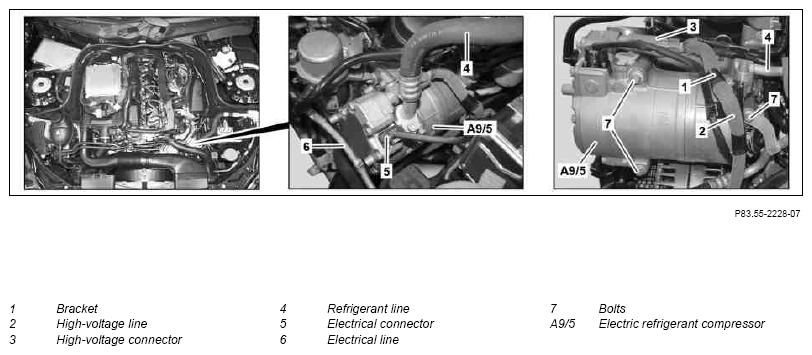

| 3 | Remove bracket (1) of high-voltage line (2) from electrical refrigerant compressor (A9/5) | ||
| 4 | Disconnect high-voltage connector (3) at electrical refrigerant compressor (A9/5) and place high-voltage line (2) to one side | ||
| 5 | Remove refrigerant lines (4) from electrical refrigerant compressor (A9/5) | ||
| *BA83.55-P-1003-01W | |||
| Fig 2 | |||
| 6 | Disconnect electrical connector (5) | ||
| 7 | Remove electrical line (6) from electrical refrigerant compressor (A9/5) | ||
| 8 | Remove screws/bolts (7) and remove electrical refrigerant compressor (A9/5) upwards | *BA83.55-P-1001-01W | |
| 9 | Install in the reverse order |
REFRIGERANT COMPRESSOR
| Number | Designation | Engine 651 in model 117, 156, 166, 172, 176, 205, 212, 218, 221, 222, 246, 253 | |
|---|---|---|---|
| BA83.55-P-1001-01W | Bolt, A/C compressor to major assembly carrier | Nm | 20 |
REFRIGERANT COMPRESSOR
| Number | Designation | Engine 651 in model 117, 156, 166, 172, 176, 205, 212, 218, 221, 222, 246, 253 | |
|---|---|---|---|
| BA83.55-P-1003-01W | Refrigerant line to refrigerant compressor | Nm | 20 |
