Remove/install rear blower motor - AR83.30-P-5565EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2, 212, 218 with CODE 581 (Automatic air conditioning)
Shown on MODEL 212 with CODE 279 (Electronic gear selector)
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Remove center console (1) | MODEL 204.0/2 with CODE 581 (Automatic air conditioning) | AR68.20-P-2000CW |
| MODEL 212 with CODE 581 (Automatic air conditioning) | AR68.20-P-2000EW | ||
| MODEL 218 with CODE 581 (Automatic air conditioning) | AR68.20-P-2000EL | ||
| 2 | Disconnect rear blower motor electrical connector (M2/1x1) | ||

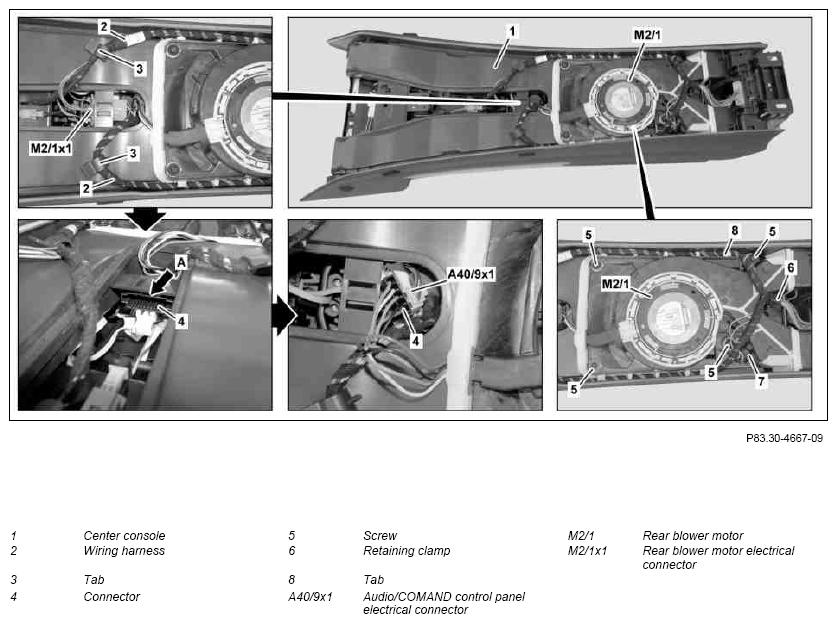

| 3 | Release catch hook (arrow A) and remove plug (4) of rear blower motor electrical connector (M2/1x1) from bracket at center console (1) | ||
| 4 | Disconnect Audio/COMAND control panel electrical connector (A40/9x1) | MODEL 204.0/2, 212 with CODE 581 (Automatic air conditioning) | |
| 5 | Remove white plug of Audio/COMAND control panel electrical connector (A40/9x1) from plug (4) of rear blower motor electrical connector (M2/1x1) | MODEL 204.0/2, 212 with CODE 581 (Automatic air conditioning) | |
| 6 | Free wiring harnesses (2) from lugs (3, 8) | ||
| 7 | Loosen retaining clamp (6) | ||
| 8 | Remove screws/bolts (5) and remove rear blower motor (M2/1) | ||
| 9 | Install in the reverse order |
