Remove/install rear air vent - AR83.10-P-4800CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 212

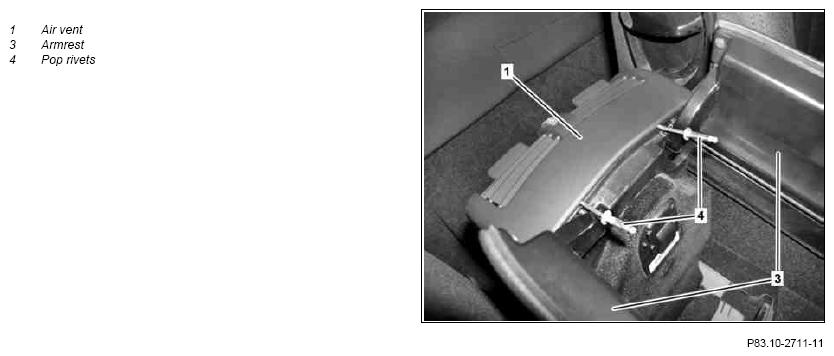

Shown on model 204.0
Shown on model 212.0 with code (279) Electronic gear selector
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73) | ||
| 2 | Unclip cover (2) | Model 204.0/2/3, 212 without code (301) Ashtray package/smoker package or Model 204.9 without code (301) Ashtray package/smoker package and without code (864) Rear entertainment system | |
| Fig 3 | |||
| 3 | Remove DVD player bracket (A40/4) | For model 204.9 with code (864) Rear entertainment system | AR82.60-P-7506CY |
| 4 | Open armrest (3) and release catch hooks (5) at air vent (1) | ||
| 5 | Remove air vent (1) upwards from center console and disconnect electrical connectors (6) | ||
| 6 | Disconnect electrical connectors (7) at rear automatic air conditioning operating unit (N22/4) | ||
| 7 | Remove rear AAC operating unit (N22/4) | AR83.40-P-6350ELH | |
| 8 | Install in the reverse order |
