Remove/install control and operating unit - AR83.40-P-6350ELH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/9, 212, 218

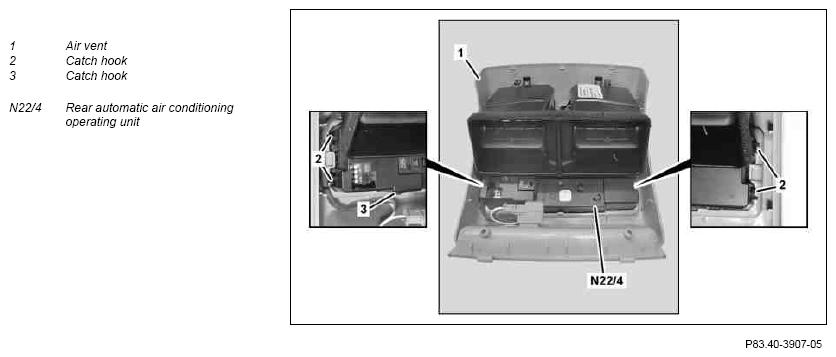

Rear control and operating unit
Shown on model 204
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove rear air nozzle (1) | Model 204, 212 | AR83.10-P-4800CW |
| Model 218.3 | AR83.10-P-4800EL | ||
| 2 | Unclip rear automatic air conditioning operating unit (N22/4) from catch hooks (2) and detach at air vent (1) | ||
| 3 | Unclip rear automatic air conditioning operating unit (N22/4) from catch hooks (3) and remove from air vent (1) | ||
| 4 | Install in the reverse order |
