Remove/install ram air flap actuator motor - AR83.10-P-2031CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218 with CODE (581) Comfort automatic air conditioning
| Remove/install | |||

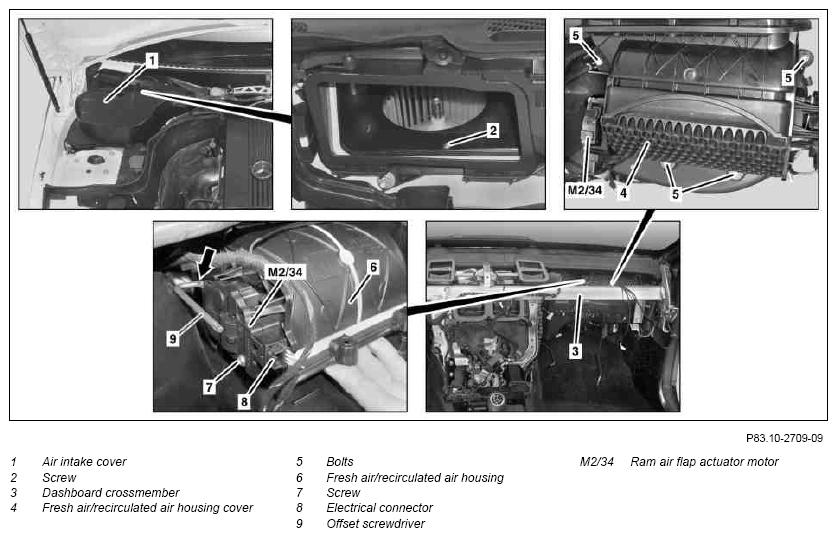

| 1 | Remove air intake (1) cover | ||
| 2 | Unscrew bolt (2) | ||
| 3 | Remove crossmember for dashboard (3) far enough until the fresh air/recirculated air housing cover (4) is accessible and can be removed | Models 204, 207, 212 Model 218 |
AR68.10-P-1120CW |
| 4 | Remove screws/bolts (5) and remove fresh air/recirculated air housing cover (4) from fresh air/recirculated air housing (6) | ||
| 5 | Lift fresh air/recirculated air housing (6) until the bolts (7, arrow) are accessible and can be removed | ||
| 6 | Remove bolts (7, arrow) | Offset screwdriver set | |
| 7 | Disconnect electrical connector (8) and remove ram air flap actuator motor (M2/34) | ||
| 8 | Install in the reverse order | ||
| 9 | Teach in and normalize ram air flap actuator motor (M2/34) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
