Remove/install interior temperature sensor - AR83.30-P-8091EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| Remove/install | |||
| 1 | Remove jacket tube module | AR54.25-P-2802EW | |
| 2 | Remove left and right trim strip from instrument panel (1) | AR68.10-P-1180EW | |

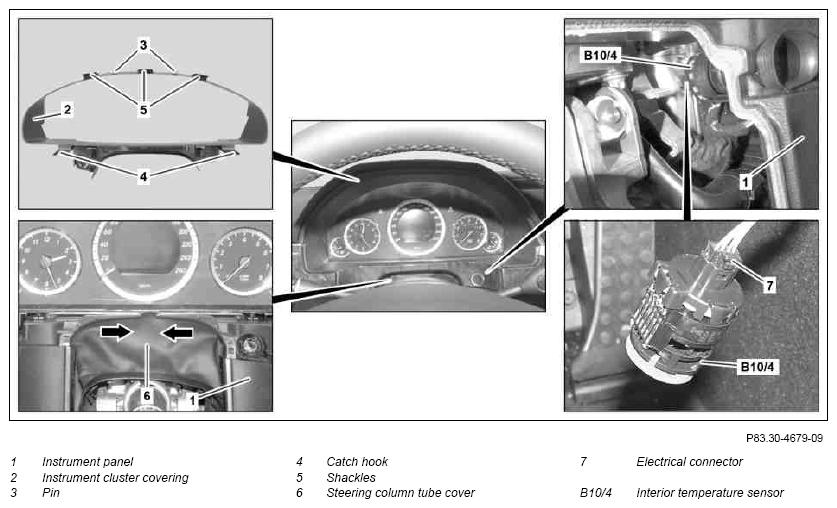

| 3 | Unlatch instrument cluster bezel (2) first at the top of the peg (3) then unlatch backwards in the lower area of the catch hooks (4) and remove | ||
| Figure | |||
| 4 | Unclip steering column tube cover (6) at both ends from instrument panel (1) (arrows) and remove | ||
| 5 | Reach behind instrument panel (1), turn interior compartment temperature sensor (B10/4) counterclockwise and remove below instrument panel (1) until electrical connector (7) is accessible. | ||
| 6 | Disconnect electrical connector (7) and remove interior compartment temperature sensor (B10/4) | ||
| 7 | Install in the reverse order |
