Remove/install diffuser flap actuator motor - AR83.10-P-2030CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218 with CODE (581) Comfort automatic air conditioning
Shown on model 204.0 up to 28.2.2011
| Remove/install | |||

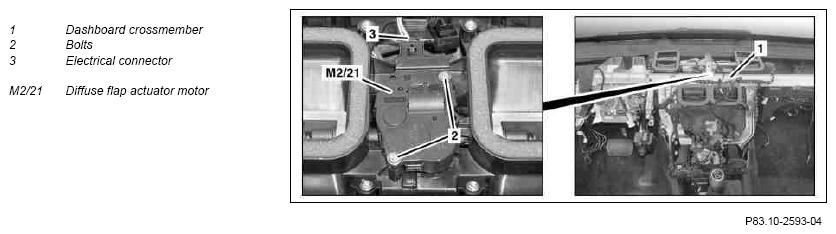

| 1 | Remove crossmember for dashboard (1) far enough to provide access to the diffuser flap actuator motor (M2/21) enabling it to be removed | Models 204, 207, 212 Model 218 |
AR68.10-P-1120CW |
| 2 | Remove bolts (2) | On model 207, 212, 218, 3 bolts (2) are installed. | |
| 3 | Detach electrical connector (3) and remove diffuser flap actuator motor (M2/21) | ||
| 4 | Install in the reverse order | ||
| 5 | Teach in and normalize diffuser flap actuator motor (M2/21) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
