Remove/install air recirculation unit, detailed information - AR83.10-P-0100-01CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212

Meaning of symbols (Logos) for picture/picture documents

OV00.01-P-1901-07A

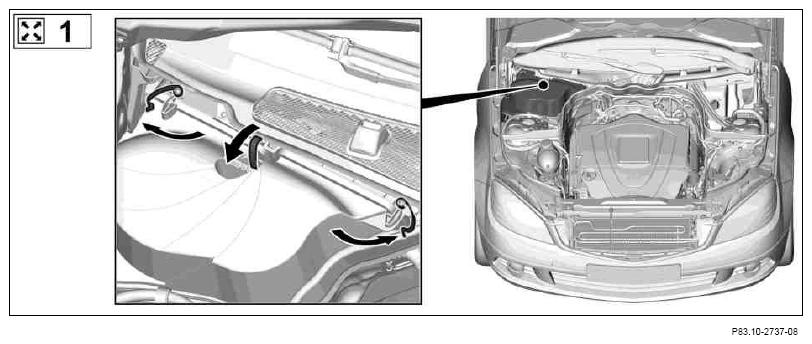

Fig 1: Removing/Installing Air Recirculation Unit (1 Of 12)

G07671136

Courtesy of MERCEDES-BENZ USA

Fig 2: Removing/Installing Air Recirculation Unit (2 Of 12)

G07671137

Courtesy of MERCEDES-BENZ USA

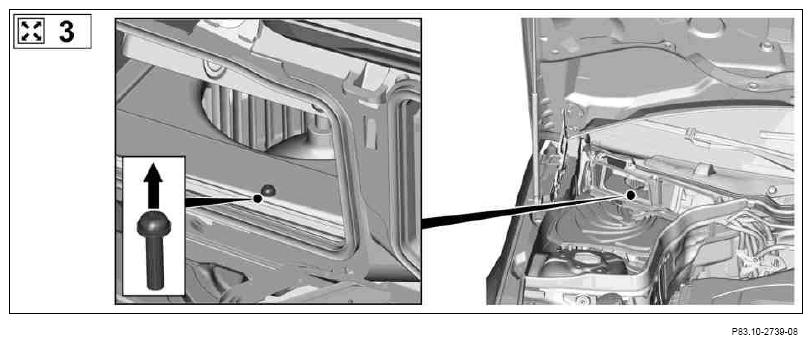

Fig 3: Removing/Installing Air Recirculation Unit (3 Of 12)

G07671138

Courtesy of MERCEDES-BENZ USA

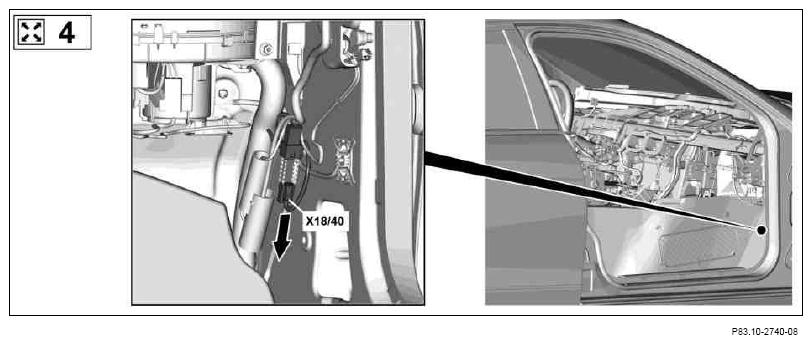

Fig 4: Removing/Installing Air Recirculation Unit (4 Of 12)

G07671139

Courtesy of MERCEDES-BENZ USA

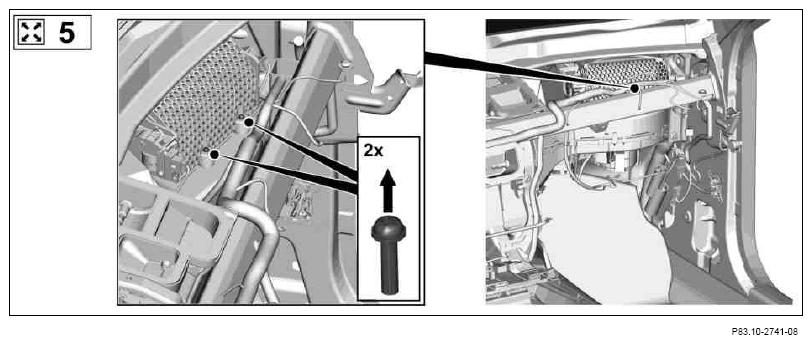

Fig 5: Removing/Installing Air Recirculation Unit (5 Of 12)

G07671140

Courtesy of MERCEDES-BENZ USA

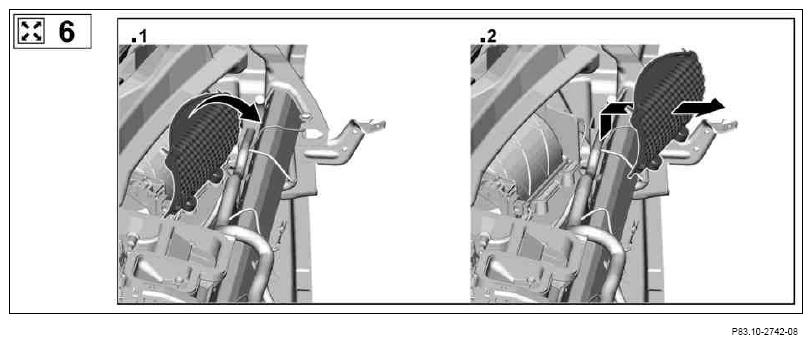

Fig 6: Removing/Installing Air Recirculation Unit (6 Of 12)

G07671141

Courtesy of MERCEDES-BENZ USA

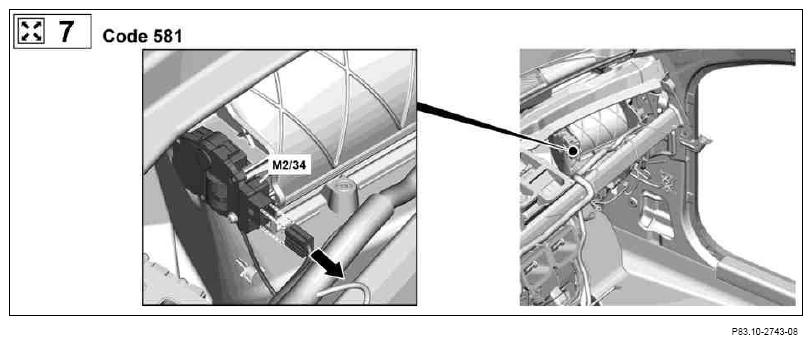

Fig 7: Removing/Installing Air Recirculation Unit (7 Of 12)

G07671142

Courtesy of MERCEDES-BENZ USA

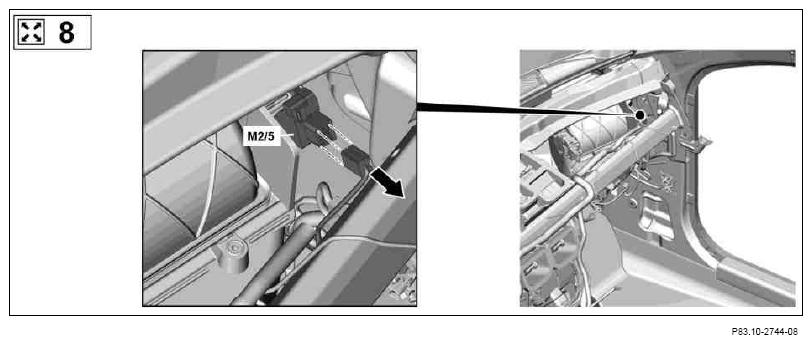

Fig 8: Removing/Installing Air Recirculation Unit (8 Of 12)

G07671143

Courtesy of MERCEDES-BENZ USA

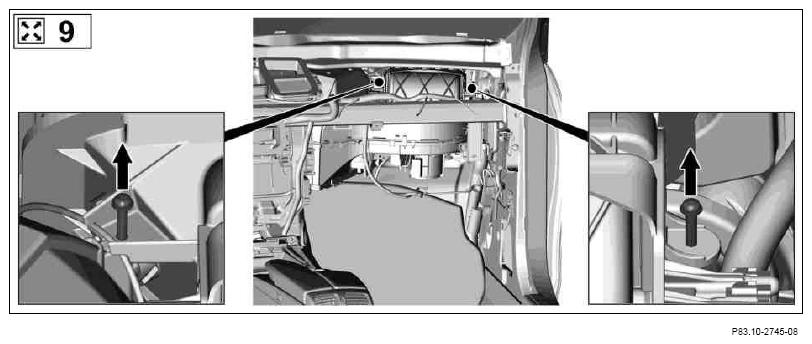

Fig 9: Removing/Installing Air Recirculation Unit (9 Of 12)

G07671144

Courtesy of MERCEDES-BENZ USA

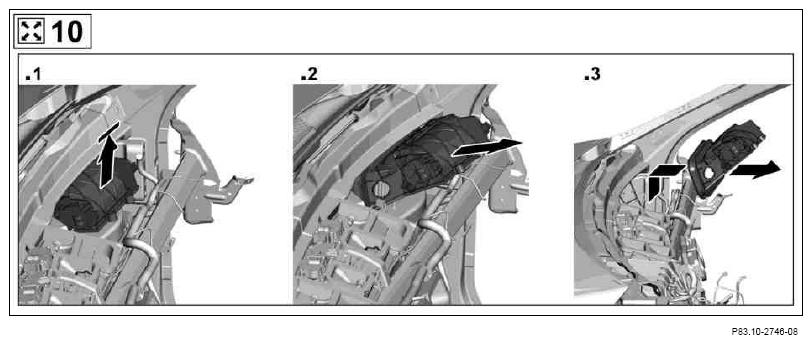

Fig 10: Removing/Installing Air Recirculation Unit (10 Of 12)

G07671145

Courtesy of MERCEDES-BENZ USA

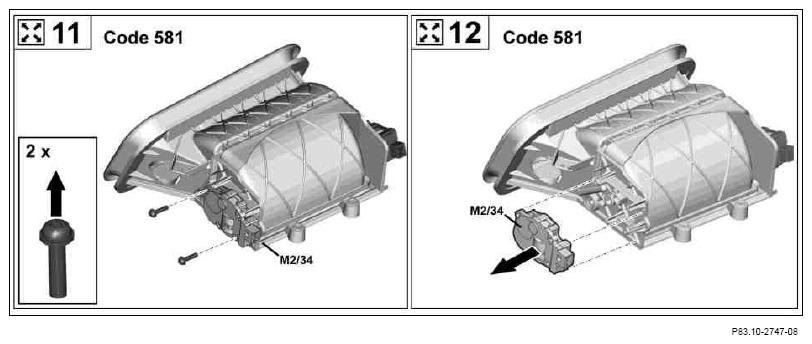

Fig 11: Removing/Installing Air Recirculation Unit (11 Of 12)

G07671146

Courtesy of MERCEDES-BENZ USA

Fig 12: Removing/Installing Air Recirculation Unit (12 Of 12)

G07671147

Courtesy of MERCEDES-BENZ USA
