Meaning of symbols (Logos) for picture/picture documents - OV00.01-P-1901-07A

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL ALL

MODIFICATION NOTES

23.2.10

This document has been expanded by additional symbols

Symbols (Logos) for operation notes

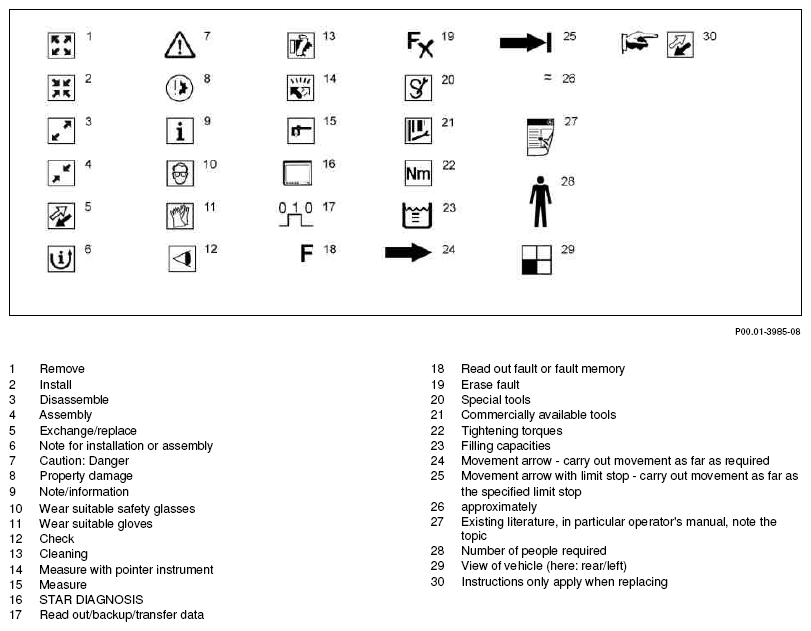

Fig 1: Examples Of Operation Notes Logos

Courtesy of MERCEDES-BENZ USA

Validities

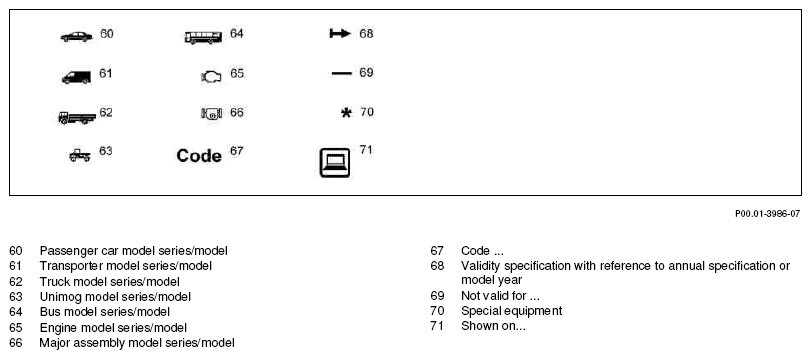

Fig 2: Examples Of Validity Codes

Courtesy of MERCEDES-BENZ USA

Examples

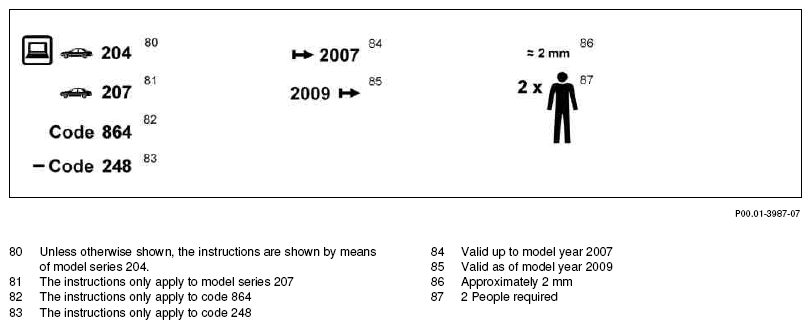

Fig 3: Examples Of Vehicle Codes

Courtesy of MERCEDES-BENZ USA
