Remove/install actuator motor for fresh and recirculated air flaps - AR83.10-P-2001CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218
Shown on model 204.0 up to 28.2.2011

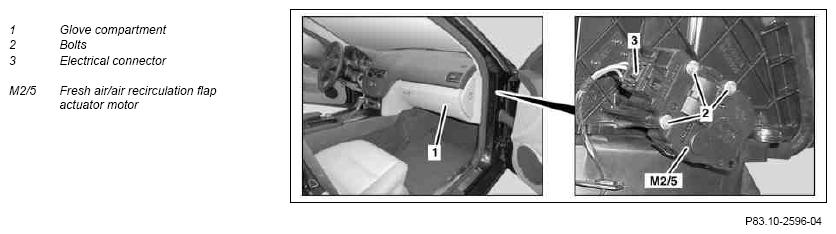

Fig 1: Actuator Motor For Fresh And Recirculated Air Flaps Remove/Install Components - Shown On Model 204.0
| Remove/install | |||
| 1 | Remove glove box (1) | Model 204.0/2/3 | AR68.10-P-1200CW |
| Model 204.9 | AR68.10-P-1200CY | ||
| Model 207 | AR68.10-P-1400EC | ||
| Model 212 | AR68.10-P-1200EW | ||
| Model 218 | AR68.10-P-1400EL | ||
| 2 | Remove bolts (2) and remove fresh air/recirculated air flap actuator motor (M2/5) far enough from fresh air/recirculated air housing to allow access to electrical connector (3) | ||
| 3 | Detach electrical connector (3) and remove fresh air/recirculated air flap actuator motor (M2/5) | ||
| 4 | Install in the reverse order | ||
| 5 | Teach in and normalize the fresh air/recirculated air flap actuator motor (M2/5) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
