Remove and install heat exchanger - AR83.25-P-1100CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218
Shown with code (581) Comfort automatic air conditioning
Shown with code (581) Comfort automatic air conditioning
| Remove/install | |||

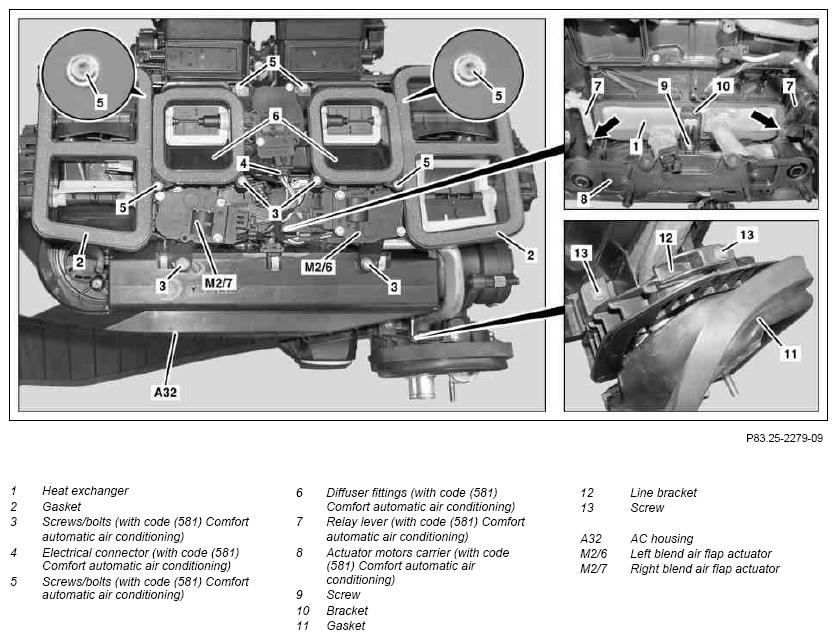

| 1 | Remove air conditioner housing (A32) | AR83.30-P-5200CW | |
| 2 | Detach left blend air flap actuator motor (M2/6) and right blend air flap actuator motor (M2/7) | ||
| 3 | Expose electrical lines of left blend air flap actuator motor (M2/6) and right blend air flap actuator motor (M2/7) and place left blend air flap actuator motor (M2/6) and right blend air flap actuator motor (M2/7) to one side with electrical lines still connected | ||
| 4 | Detach seals (2) | ||
| 5 | Remove screws/bolts (3) | On vehicles with code (581) Comfort automatic air conditioning | |
| 6 | Disconnect electrical connector (4) | On vehicles with code (581) Comfort automatic air conditioning | |
| 7 | Unscrew bolts (5), remove diffuser fitting (6) and lay down to side on air conditioning housing (A32) | On vehicles with code (581) Comfort automatic air conditioning | |
| 8 | Unhook relay lever (7) (arrows) and remove actuator motors carrier (8) | On vehicles with code (581) Comfort automatic air conditioning | |
| 9 | Remove screw/bolt (9) and remove bracket (10) | ||
| 10 | Moisten seal (11) in area of line bracket (12) with lubricant and guide over line bracket (12). | Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A |
| 11 | Remove screws/bolts (13) and remove line bracket (12) | ||

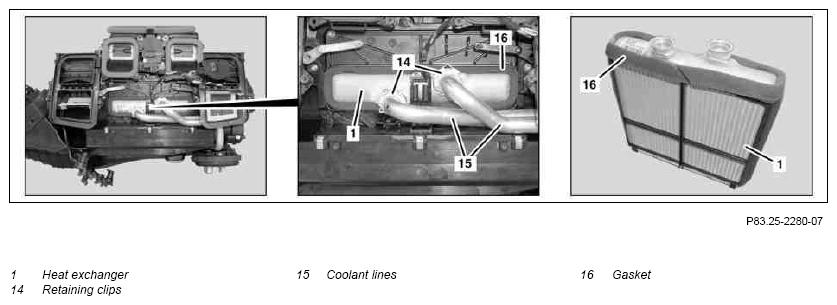

| 12 | Unclip retaining clamps (14) from coolant lines (15) | ||
| 13 | Pull coolant lines (15) out of heat exchanger (1) and push to one side | ||
| 14 | Pull heat exchanger (1) out of air conditioner housing (A32) | ||
| 15 | Install in the reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
