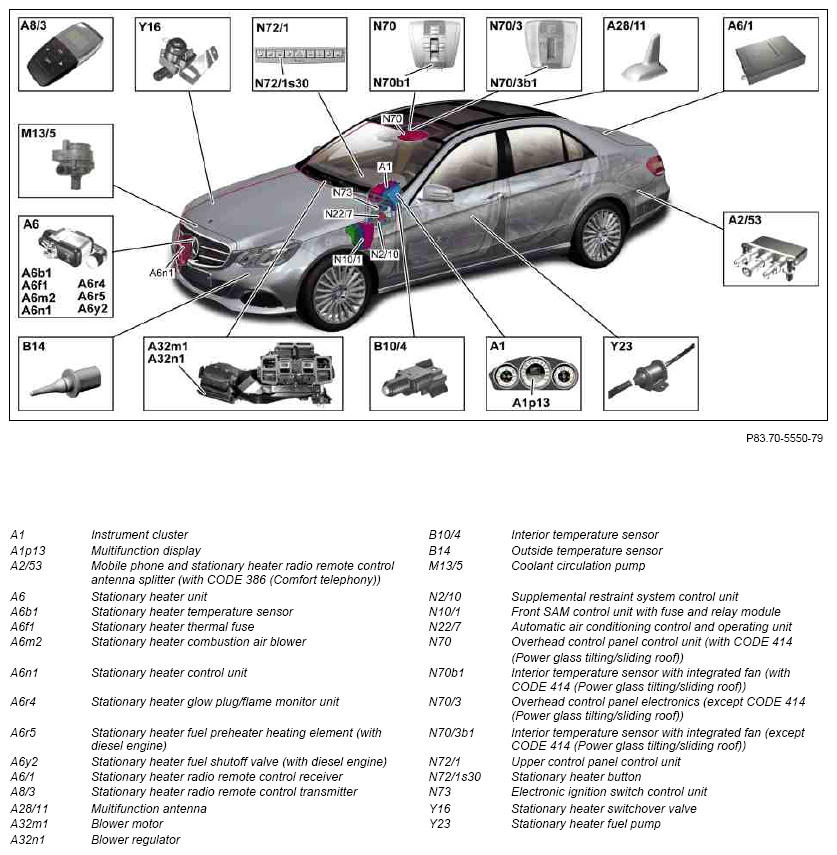

Overview of system components for stationary heater (STH) - GF83.70-P-9996FL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 228 (Auxiliary heater)
Shown on model 212.0 as of 01.12.2014
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Stationary heater control unit, component description | A6n1 | GF83.70-P-4066FL | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for automatic air conditioning control and operating unit | MODEL 212 with CODE 228 (Auxiliary heater) without CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLA | |
| MODEL 212 with CODE 228 (Auxiliary heater) with CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLB |
||
| Component description for overhead control panel control unit | MODEL 212 with CODE 228 (Auxiliary heater) with CODE 414 (Power glass tilting/sliding roof) N70 |
GF82.20-P-5216FL | |
| Component description for electronic overhead control panel | MODEL 212 with CODE 228 (Auxiliary heater) without CODE 414 (Power glass tilting/sliding roof) N70/3 |
GF82.20-P-5217FL | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Table of contents: Function description of stationary heater (STH) | GF83.70-P-0996FL |
