Draining TIREFIT sealant out of tires - AR40.10-P-1080EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 207 without CODE 690 (Collapsible spare wheel) without CODE R66 (run-flat tires)

MODEL 172 without CODE 669 (Spare tire on steel rim) without CODE R66 (run-flat tires)

MODEL 205 without CODE R66 (run-flat tires)

MODEL 212, 218, 222 without CODE 669 (Spare tire on steel rim) without CODE 690 (Collapsible spare wheel) without CODE R66 (run-flat tires)

MODEL 217 without CODE 690 (Collapsible spare wheel) without CODE R66 (run-flat tires)

MODEL 231 without CODE 690 (Collapsible spare wheel) without CODE R66 (run-flat tires)

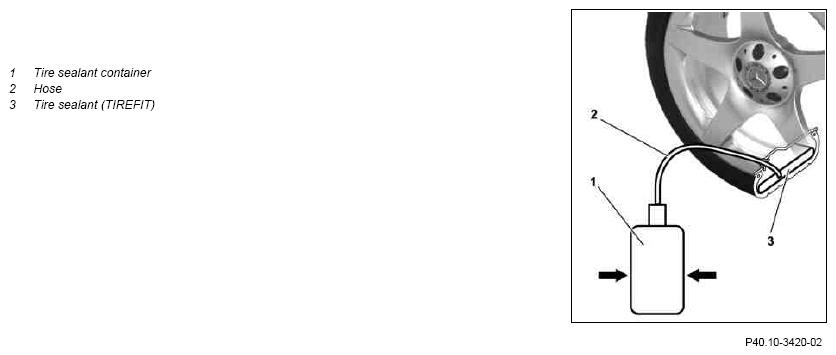

Fig 1: Draining Tirefit Sealant Out Of Tires
G09976439Courtesy of MERCEDES-BENZ USA
DANGER Risk of poisoning  caused by swallowing the TIREFIT emulsion. Risk of injury  caused by skin contact and eye contact with the TIREFIT emulsion. Risk of fire  caused by ignition of the TIREFIT emulsion Do not swallow or come into contact with the TIREFIT tire sealant, which is an emulsion of rubber and terpene phenolic resin. No open fire or open light sources. AS40.10-Z-0001-01A
  Drain
1 Detach complete wheel MODEL 205 AR40.10-P-1101A
REFER TO MAINTENANCE MODEL 222, 217 AP40.10-P-4050HA
REFER TO MAINTENANCE MODEL 172 AP40.10-P-4050V
REFER TO MAINTENANCE MODEL 207 AP40.10-P-4050CW
REFER TO MAINTENANCE MODEL 166, 212, 218, 231 AP40.10-P-4050EW
2 Remove valve element from valve and release pressure from the complete wheel IMPORTANT Put the complete wheel down so that the valve is on top and slowly unscrew the valve insert to prevent the tire sealant (3) from spraying out uncontrolled. Use a dry cloth to collect the discharged tire sealant (3).
3.1 Unscrew union nut of the valve body and press the valve body into the complete wheel MODEL 166, 207
with CODE 475 (Tire pressure monitor (Schrader))
without CODE 690 (Collapsible spare wheel)
without CODE R66 (run-flat tires)
MODEL 172
with CODE 475 (Tire pressure monitor (Schrader))
without CODE 669 (Spare tire on steel rim)
without CODE R66 (run-flat tires)
MODEL 205
with CODE 475 (Tire pressure monitoring system)
without CODE R66 (run-flat tires)
MODEL 212, 218, 222
with CODE 475 (Tire pressure monitor (Schrader))
without CODE 669 (Spare tire on steel rim)
without CODE 690 (Collapsible spare wheel)
without CODE R66 (run-flat tires)
MODEL 217
without CODE 690 (Collapsible spare wheel)
without CODE R66 (run-flat tires)
MODEL 231
with CODE 475 (Tire pressure monitor (Schrader))
without CODE 690 (Collapsible spare wheel)
without CODE R66 (run-flat tires)
3.2 Pull valve out of the disk wheel MODEL 166, 207
without CODE 475 (Tire pressure monitor (Schrader))
without CODE 690 (Collapsible spare wheel)
without CODE R66 (run-flat tires)
MODEL 172
without CODE 475 (Tire pressure monitor (Schrader))
without CODE 669 (Spare tire on steel rim)
without CODE R66 (run-flat tires)
MODEL 205
without CODE 475 (Tire pressure monitoring system)
without CODE R66 (run-flat tires)
MODEL 212, 218, 222
without CODE 475 (Tire pressure monitor (Schrader))
without CODE 669 (Spare tire on steel rim)
without CODE 690 (Collapsible spare wheel)
without CODE R66 (run-flat tires)
MODEL 217
without CODE 690 (Collapsible spare wheel)
without CODE R66 (run-flat tires)
MODEL 231
without CODE 475 (Tire pressure monitor (Schrader))
without CODE 690 (Collapsible spare wheel)
without CODE R66 (run-flat tires)
NOTES Carefully pull out the valve.
Otherwise the surface of the disk wheels may be damaged.
IMPORTANT Push the valve debris remaining in the valve bore of the disk wheel into the inside of the complete wheel.
4 Place complete wheel upright and slightly elevated with valve bore pointing downwards for 10 minutes IMPORTANT To ease extraction of the tire sealant (3).
5 Attach hose (2) to empty tire sealant container (1) If an empty tire sealant container (1) is available.
IMPORTANT Replace the original hose of the tire sealant container (1) with a hose (2) 400 mm long.
6 Squeeze tire sealant container (1) together and insert hose (2) through valve bore of disk wheel into tire sealant (3) If an empty tire sealant container (1) is available.
7.1 Reduce pressure on the tire sealant container (1) and suction off tire sealant (3) If an empty tire sealant container (1) is available.
IMPORTANT Position tire sealant container (1) under the complete wheel in order to make it easier to suction off the tire sealant (3). Approx. 90 % of the tire sealant (3) can be removed.
7.2 Bore the tire tread with a drill bit (10 mm dia.) and allow tire sealant (3) to flow off into a suitable container If an empty tire sealant container (1) is not available.
PROGRAM HEATING (2ND CUT-IN TIME) Clean
8 Clean disk wheel IMPORTANT Remove the remains of the tire sealant (3) using a damp cloth.
9 Dispose of used tire sealant (3) properly
10 Replace tires   AR40.10-P-1030EW
11 Place new tire repair kit (3) into the vehicle
REFER TO MAINTENANCE     AP40.10-P-4054R
