Replace shaft seal on drive pinion - AR33.30-P-0530SYZ

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.08/09/28/29/38/93/98/99, 207.38

MODEL 212, 218 with TRANSMISSION 722.97

MODEL 212.08/09/28/29, 218.39/99 with TRANSMISSION 722.96

MODEL 216, 221 with TRANSMISSION 722.96

MODEL 222 with ENGINE 278 with TRANSMISSION 722.96

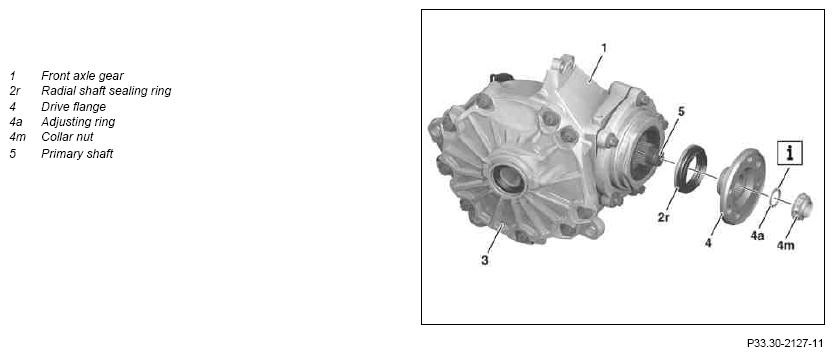

Fig 1: Replacing Shaft Seal On Drive Pinion
G09976242Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Detach propeller shaft from front axle transmission (1) MODEL 204, 207 AR41.10-P-0070CWX
    MODEL 212, 218 AR41.10-P-0070EWX
    MODEL 216, 221 AR41.10-P-0070SYZ
    MODEL 222 AR41.10-P-0070LFX
2 Drain oil out of front axle transmission (1) TORQUE SPECIFICATION Drain screw at front axle transmission *BA33.30-P-1008-03G
3 Detach collar nut (4m) using retainer wrench from drive flange (4) and remove adjusting ring (4a) from drive flange (4) NOTES
    SPECIAL TOOL Counterhold retainer wrench using locking handle. To do so, an SPECIAL TOOL assembly wedge must be placed between the breaker bar and the front axle carrier.
Otherwise damage may occur.
IMPORTANT The SPECIAL TOOL retainer wrench is secured to the drive flange with just one bolt (4).
IMPORTANT The adjusting ring (4a) determines the bearing preload of the front axle transmission (1) and therefore it must on no account be replaced. If the adjusting ring (4a) is lost, the front axle transmission (1) must be replaced.
    SPECIAL TOOL Mounting wedge Fig 2
    SPECIAL TOOL Pin wrench Fig 5
4 Mark position of drive flange (4) relative to primary shaft (5)
5 Pull off drive flange (4) SPECIAL TOOL Puller Fig 4
6 Use suitable tool to pry radial shaft sealing ring (2r) out of front axle transmission (1)
7 Remove pinion housing   AR33.30-P-0469SYZ
    NOTES
Absolute cleanliness is essential when working on the front axle transmission (1).
If this is not ensured, even minute dirt particles can prevent the front axle transmission (1) from functioning correctly.
INSTALLING Install
8 Fill front axle transmission (1) with oil
REFER TO CAPACITIES & SPECIFICATIONS Universal hypoid gear oils (specification 235.7)   Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
    IMPORTANT The front axle transmission (1) does not have an oil filler hole and must be filled via the opening in the pinion housing.
    FLUID SPECIFICATION *BF33.30-P-1001-03C
    MODEL 216.386/394 with TRANSMISSION 722.96
MODEL 221.08/094/18/194 with TRANSMISSION 722.96
    FLUID SPECIFICATION MODEL 204, 207, 212, 218, 222 *BF33.30-P-1001-03F
9 Install pinion housing   AR33.30-P-0469SYZ
10 Use drift to pound radial shaft sealing ring (2r) into front axle transmission (1)
REFER TO CAPACITIES & SPECIFICATIONS Universal hypoid gear oils (specification 235.7)   Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
    IMPORTANT Coat sealing lip of radial shaft sealing ring (2r) using universal hypoid gear oil.
    SPECIAL TOOL Drift Fig 3
11 Align drive flange (4) with marking on primary shaft (5) and slide on to primary shaft (5)
12 Slide adjusting ring (4a) onto primary shaft (5) IMPORTANT The adjusting ring (4a) determines the bearing preload of the front axle transmission (1) and therefore it must on no account be replaced. If the adjusting ring (4a) is lost, the front axle transmission (1) must be replaced.
13 Replace collar nut (4m) and attach drive flange (4) SPECIAL TOOL
SPECIAL TOOL Counterhold retainer wrench using locking handle. To do so, an SPECIAL TOOL assembly wedge must be placed between the breaker bar and the front axle carrier.
Otherwise damage may occur.
IMPORTANT The SPECIAL TOOL retainer wrench is secured to the drive flange with just one bolt (4).
    TORQUE SPECIFICATION Collar bolt, joint flange to drive pinion *BA33.30-P-1003-03G
    SPECIAL TOOL Mounting wedge Fig 2
    SPECIAL TOOL Pin wrench Fig 5
14 Attach propeller shaft to front axle transmission (1) MODEL 204, 207 AR41.10-P-0070CWX
    MODEL 212, 218 AR41.10-P-0070EWX
    MODEL 216, 221 AR41.10-P-0070SYZ
    MODEL 222
NOTES
Always check tightening torque. Otherwise there may be some noise development and vibrations in the front axle transmission (1).		 AR41.10-P-0070LFX
INSPECT Check
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
15 Perform engine test run and check front axle transmission (1) for leaks and that it is functioning correctly
FRONT AXLE TRANSMISSION

Number Designation MODEL 204 MODEL 207
BA33.30-P-1003-03G Collar bolt, joint flange to drive pinion Nm 100 100
FRONT AXLE TRANSMISSION

Number Designation MODEL 212 MODEL 216
BA33.30-P-1003-03G Collar bolt, joint flange to drive pinion Nm 100 100
FRONT AXLE TRANSMISSION

Number Designation MODEL 218 MODEL 221
BA33.30-P-1003-03G Collar bolt, joint flange to drive pinion Nm 100 100
FRONT AXLE TRANSMISSION

Number Designation MODEL 222
BA33.30-P-1003-03G Collar bolt, joint flange to drive pinion Nm 100
FRONT AXLE TRANSMISSION

Number Designation MODEL 204 MODEL 207
BA33.30-P-1008-03G Drain screw at front axle transmission Nm 20 20
FRONT AXLE TRANSMISSION

Number Designation MODEL 212 MODEL 216
BA33.30-P-1008-03G Drain screw at front axle transmission Nm 20 20
FRONT AXLE TRANSMISSION

Number Designation MODEL 218 MODEL 221
BA33.30-P-1008-03G Drain screw at front axle transmission Nm 20 20
FRONT AXLE TRANSMISSION

Number Designation MODEL 222
BA33.30-P-1008-03G Drain screw at front axle transmission Nm 20
FRONT AXLE TRANSMISSION

Number Designation MODEL 216 with 4MATIC MODEL 221 with 4MATIC
BF33.30-P-1001-03C Hypoid gear oil Filling capacity Liter 0, 6 0, 6
Specification Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85 Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
FRONT AXLE GEAR

Number Designation MODEL 204 MODEL 207
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 6 0, 6
Specification Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85 Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
FRONT AXLE GEAR

Number Designation MODEL 212 MODEL 218
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 6 0, 6
Specification Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85 Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
FRONT AXLE GEAR

Number Designation MODEL 222
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 6
Specification Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
G09976243Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Drift (221 589 04 15 00)
G09976244Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Puller (203 589 02 33 00)
G09976245Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Pin Wrench (164 589 00 05 00)
G09976246Courtesy of MERCEDES-BENZ USA
