Torque diagram of exhaust manifold - AR09.40-P-6020-11CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 166, 172, 204, 205, 207, 212, 218, 221, 222, 253
EXHAUST MANIFOLD
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA14.10-P-1001-01P | Nut on exhaust manifold to cylinder head for steel exhaust manifold | Nm | 30 |
EXHAUST MANIFOLD
| Number | Designation | Engine 651 | ||
|---|---|---|---|---|
| BA14.10-P-1003-01P | Nut on exhaust manifold to cylinder head for cast exhaust manifold | Stage 1 | Nm | 15 |
| Stage 2 | Nm | 35 | ||
Note the different tightening pattern for the exhaust manifold casting and the steel exhaust manifold.

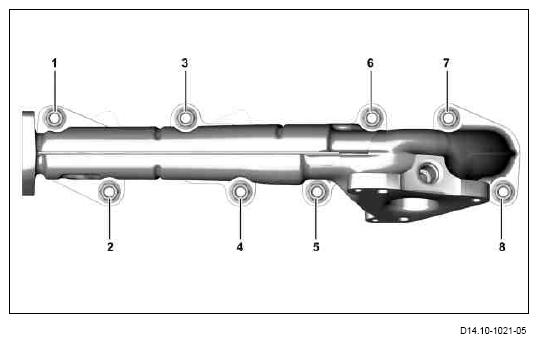

Tightening pattern for exhaust manifold casting
Do not use any assembly paste or similar product.
- Tighten nut (4) and subsequently nut (6) to the first stage of the prescribed torque
.
- Tighten nuts (1 to 8) in ascending sequence to the second stage of the prescribed torque
Tightening pattern for steel exhaust manifold
Do not use any assembly paste or similar product.
- Tighten nuts (1 to 8) in ascending sequence with the prescribed torque
