Remove/install switchover valve for bypass flap aneroid capsule - AR09.40-P-1004CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 204, 207, 212
| Remove/install | |||
| 1 | Remove cylinder head cover trim | ||
| 2 | Remove engine intake air duct upstream of air filter housing | ||
| 3 | Install cover for belt drive | ||

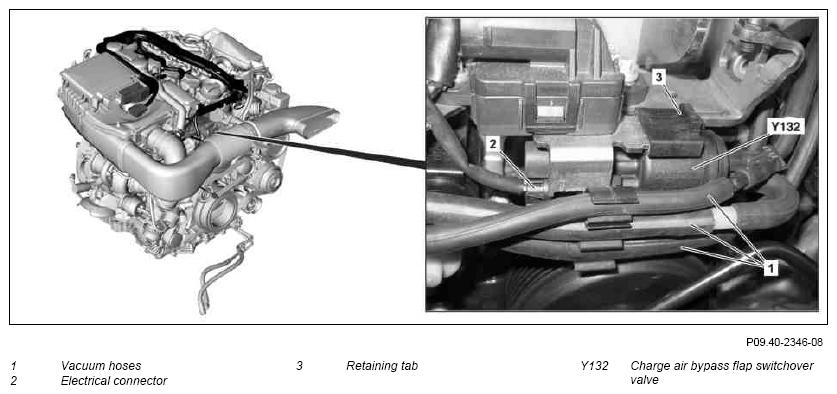

| 4 | Detach vacuum hoses (1) | ||
| 5 | Remove electrical connector (2) on charge air bypass flap switchover valve (Y132) | ||
| 6 | Unlock and detach charge air bypass flap switchover valve (Y132) on retaining tab (3) | ||
| 7 | Install in the reverse order |
