Remove/install pressure transducer for boost pressure aneroid capsule - AR09.40-P-1003CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 172, 204, 207, 212, 218, 221

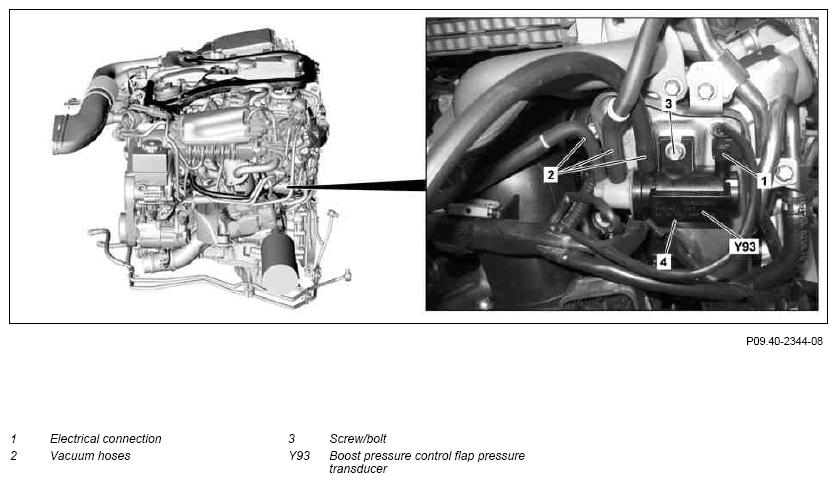

Shown on model 172 with engine 651
| Remove/install | |||
| 1 | Remove bottom sections of soundproofing | ENGINE 651 in MODEL 221 without CODE Z07 (Top protection) | AR61.20-P-1105SX |
| ENGINE 651 in MODEL 172.4 | AR94.30-P-5300W | ||
| ENGINE 651 in MODEL 204.0/2/3, 207, 212, 218 | AR94.30-P-5300EW | ||
| ENGINE 651 in MODEL 204.9 | AR61.20-P-1105CY | ||
| 2 | Disconnect electrical connection (1) from boost pressure control flap pressure transducer (Y93) | ||
| 3 | Detach vacuum hoses (2) | ||
| 4 | Release upper screw/bolt (3) | ||
| 5 | Remove screw/bolt and boost pressure control flap pressure transducer (Y93) upwards | ||
| 6 | Install in the reverse order |
