Remove/install oil supply connection fitting of turbocharger - AR09.40-P-6023SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 207, 212, 218, 221, 222

MODIFICATION NOTES

20.12.11 Value altered: screw/bolt, oil supply connection fitting to cylinder crankcase   BA09.40-P-1008-01K
29.2.12 Screw oil supply pipe on the cylinder crankcase   BA09.40-P-1008-01K
9.7.13 Motorol MOTOR 642.932/961 except CODE 474 (particle filter) BF18.00-P-1001-01A
9.7.13 Motorol MOTOR 642.930 ## bis 458147 except CODE 474 (particle filter) BF18.00-P-1001-01A
9.7.13 Motorol MOTOR 642.930 ## ab 458148 except CODE 474 (particle filter) BF18.00-P-1001-01A

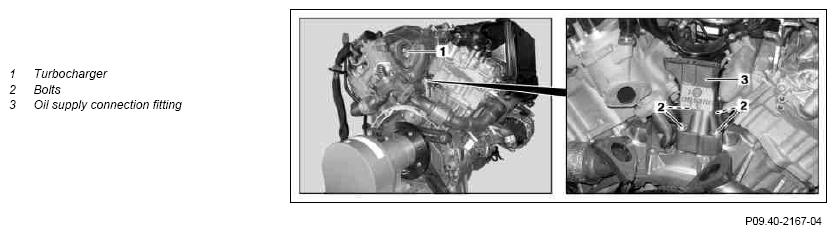

Fig 1: Turbocharger, Oil Supply Connection Fitting & Bolts
G09974892Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove turbocharger (1) MODEL 207, 212, 218, 222 AR09.40-P-6020OGE
MODEL 221 AR09.40-P-6020SXI
2 Remove screw/bolts (2) on oil supply connection fitting (3) TORQUE SPECIFICATION Screw/bolt, oil supply connection fitting to cylinder crankcase *BA09.40-P-1008-01K
3 Remove oil supply connection fitting (3) INSTALLATION NOTES
Replace seal on oil supply connection fitting (3).
In this way escaping of oil is avoided.
4 Install in the reverse order
INSPECT Check
5 Check engine oil level ENGINE 642 in MODEL 222 AR18.00-P-3035-01LFD
ENGINE 642 in MODEL 207, 212, 218, 221 AR18.00-P-3035-01SXI
FLUID SPECIFICATION Engine oil *BF18.00-P-1001-01S
FLUID SPECIFICATION Engine oil *BF18.00-P-1001-01A
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
6 Check for leaktightness with engine running
TURBOCHARGER

Number Designation ENGINE 642
BA09.40-P-1008-01K Screw/bolt, oil supply connection fitting to cylinder crankcase Nm 20
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.932/961 without CODE 474 (Particulate trap) ENGINE 642.930 ## up to 458147 without CODE 474 (Particulate trap)
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liter 8, 0 9, 5
Specification BB00.40-P-0228-03A BB00.40-P-0228-03A
Specification BB00.40-P-0228-05A BB00.40-P-0228-05A
Specification BB00.40-P-0228-51A BB00.40-P-0228-51A
Specification BB00.40-P-0229-03A BB00.40-P-0229-03A
Specification BB00.40-P-0229-31A BB00.40-P-0229-31A
Specification BB00.40-P-0229-05A BB00.40-P-0229-05A
Specification BB00.40-P-0229-51A BB00.40-P-0229-51A
Specification BB00.40-P-0229-52A BB00.40-P-0229-52A
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.930 ## as of 458148 without CODE 474 (Particulate trap)
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liter 8, 0
Specification BB00.40-P-0228-03A
Specification BB00.40-P-0228-05A
Specification BB00.40-P-0228-51A
Specification BB00.40-P-0229-03A
Specification BB00.40-P-0229-31A
Specification BB00.40-P-0229-05A
Specification BB00.40-P-0229-51A
Specification BB00.40-P-0229-52A
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.826/830/832/834/835/836/838/850/852/853/854/856/858/861/862/867/868 with CODE 474 (Particulate trap) ENGINE 642.930 ## up to 458147 with CODE 474 (Particulate trap)
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liter 8, 0 9, 5
Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 BB00.40-P-0228-51A
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 BB00.40-P-0229-31A
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 BB00.40-P-0229-51A
Specification Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1 BB00.40-P-0229-52A
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.930 ## as of 458148 with CODE 474 (Particulate trap) ENGINE 642.932/961 with CODE 474 (Particulate trap)
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liter 8, 0 8, 0
Sheet BB00.40-P-0228-51A BB00.40-P-0228-51A
Sheet BB00.40-P-0229-31A BB00.40-P-0229-31A
Sheet BB00.40-P-0229-51A BB00.40-P-0229-51A
Sheet BB00.40-P-0229-52A BB00.40-P-0229-52A
