Remove/install intake port shutoff actuator motor - AR09.20-P-1313CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

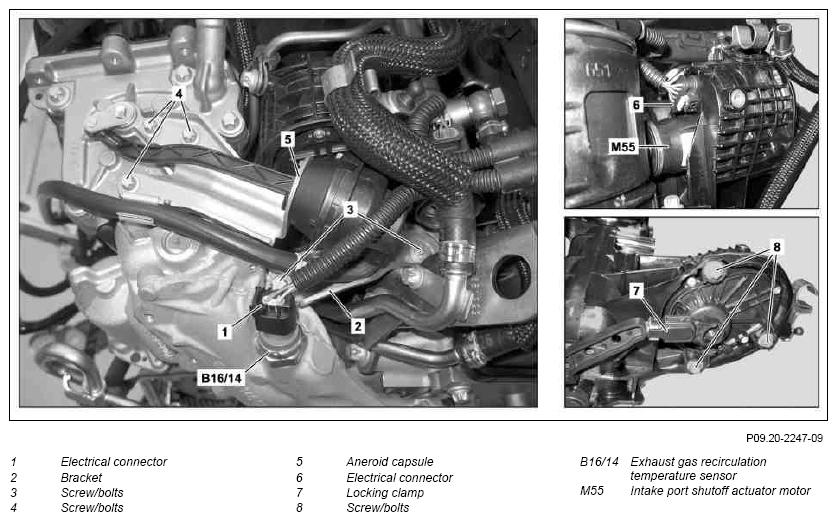

ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221
| Remove/install | |||
| 1 | Remove cylinder head cover trim | ||
| 2 | Remove section for the partition wall on the left and center | Model 166 | |
| 3 | Disconnect electrical connector (6) | ||
| 4 | Disconnect electrical connector (1) | ||
| 5 | Undo screw/bolts (3) and remove bracket (2) | *BA09.41-P-1008-01N | |
| 6 | Remove screw/bolts (4) and swivel aneroid capsule (5) to one side | ||
| *BA14.20-P-1020-01K | |||
| 7 | Unlock locking clamp (7) and pull out | ||
| 8 | Remove screw/bolts (8) and intake port shutoff actuator motor (M55) | *BA09.41-P-1009-01N | |
| 9 | Install in the reverse order |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 651 | |
|---|---|---|---|
| BA09.41-P-1008-01N | Screw/bolt, charge air manifold to charge air manifold bracket | Nm | 9 |
| BA09.41-P-1009-01N | Screw/bolt, intake port shutoff actuator motor to charge air distribution line | Nm | 9 |
EXHAUST GAS RECIRCULATION
| Number | Designation | ENGINE 651 | ||
|---|---|---|---|---|
| BA14.20-P-1020-01K | Attachment of screw/bolts, bypass valve vacuum unit holder to bypass valve | M6 | Nm | 12 |
