Remove/install aneroid capsule for exhaust gas turbocharger bypass flap - AR09.40-P-1002-02CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 in MODEL 204, 207, 212 (except 212.098/298)

TURBOCHARGER

Number Designation ENGINE 651
BA09.40-P-1012-01P Fastening nut on turbocharger vacuum unit M6 Nm 9
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1027-07A "Yellow" locking paint Lackfabrik Bader GmbH & Co. KG

REMOVINGRemoval

  1. Detach control line (1) from turbocharger bypass flap aneroid capsule (2).

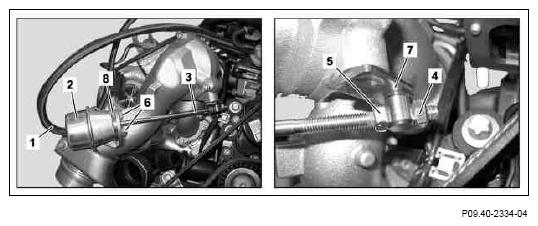

    Fig 1: Control Line, Aneroid Capsule, Control Rod, Lever & Nuts
    G10240889Courtesy of MERCEDES-BENZ USA
  2. Unscrew nut (4).
  3. Unscrew nuts (6) on turbocharger bypass flap aneroid capsule (2).
  4. Remove turbocharger bypass flap aneroid capsule (2).

    INSTALLINGInstallation

  5. Introduce turbocharger bypass flap aneroid capsule (2) and tighten nuts (6).
  6. Turn nut (5) on the control rod (3) in direction of the turbocharger bypass flap aneroid capsule (2) until the lever (7) is free.
  7. Press lever (7) up to end stop in direction of the control rod end.
  8. Turn nut (5) with zero clearance up to lever (7).
  9. In order to achieve the required pretension, mark nut (5) and turn by exactly three further revolutions in the direction of the control rod end.
  10. Tighten nut (5) using the open end wrench and tighten nut (4).

    IMPORTANT This is to ensure that the control rod (3) is secured against adjustment.

  11. Secure nuts (4, 5 and 6) using temperature resistant paint.
  12. Place control line (1) on turbocharger bypass flap aneroid capsule connection (2).
