Remove/install roller sun blind - AR68.50-P-3400EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/1 with CODE (540) Electric rear window roller blind

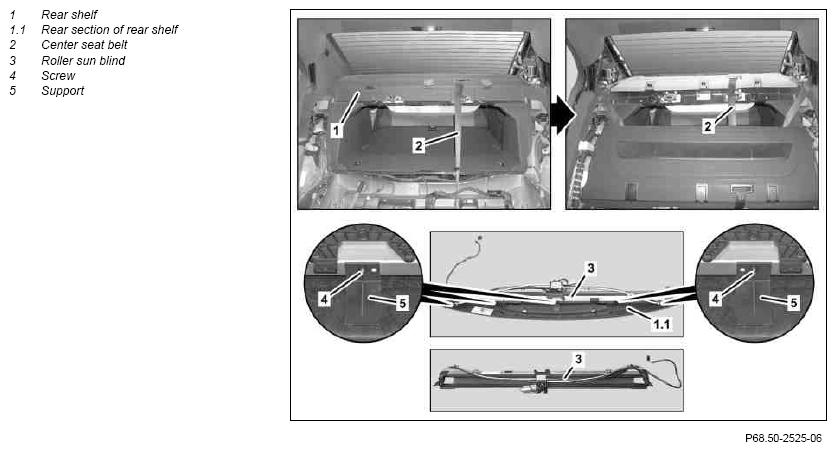

Fig 1: Roller Sun Blind Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear shelf (1) and rear section of rear shelf (1.1)	Ensure that the rear shelf (1) in the vehicle is not damaged. Lay rear shelf (1) down in vehicle with center seat belt (2) installed.	AR68.30-P-4580EW
2	Unscrew bolts (4) and remove roller sun blind (3) from mounts (5)	Ensure that the roller sun blind (3) is inserted into all mounts (5).
3	Install in the reverse order
