Remove/install exhaust gas recirculation cooler - AR14.20-P-7665SXI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212, 218, 221, 222
MODIFICATION NOTES
| 19.3.13 | Perform engine test run, added | Operation step 7 |
| Remove/install | |||
| 1 | Remove charge air manifold | ENGINE 642 in MODEL 222 | AR09.41-P-1310LFD |
| ENGINE 642 in MODEL 207, 212, 218, 221 | AR09.41-P-1310SXI | ||
| 2 | Unhook intake port shutoff actuator motor | ENGINE 642 in MODEL 207, 212, 218, 222 | AR09.20-P-1314CO |
| ENGINE 642 in MODEL 221 | AR09.20-P-1314SXI | ||
| 3 | Disconnect charge air manifold | ||

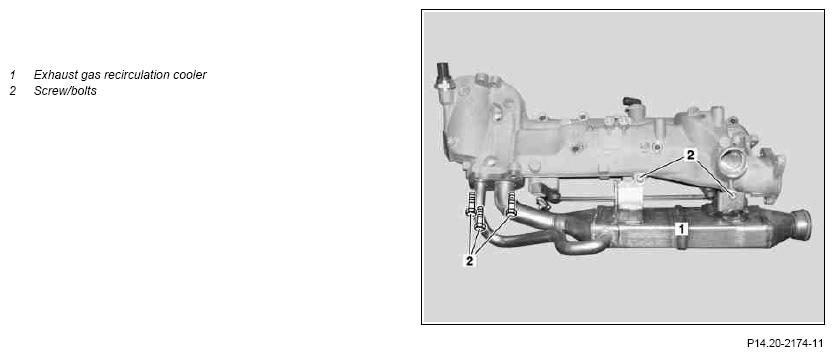

| 4 | Remove screw/bolts (2) | *BA14.20-P-1001-01G | |
| 5 | Remove exhaust gas recirculation cooler (1) | ||
| 6 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out an engine test run and check exhaust recycle plant for leaktightness |
EXHAUST GAS RECIRCULATION
| Number | Designation | ENGINE 642.82/83/85/86/87/886/9 | ||
|---|---|---|---|---|
| BA14.20-P-1001-01G | Bolt, exhaust gas recirculation cooler to charge air manifold | M6X15 | Nm | 12 |
| M6X20 | Nm | 10 | ||
