Component description for exhaust aftertreatment control unit - GF14.40-P-3030OM
ENGINE 651.9 in MODEL 204.9 with CODE U42 (BlueTEC diesel exhaust treatment (SCR))
ENGINE 651.9 in MODEL 212 (except 212.098/298) with CODE U42 (BlueTEC diesel exhaust treatment (SCR)) without CODE 494 (US version) without CODE U77 (Diesel Emission control BLUETEC (SCR))

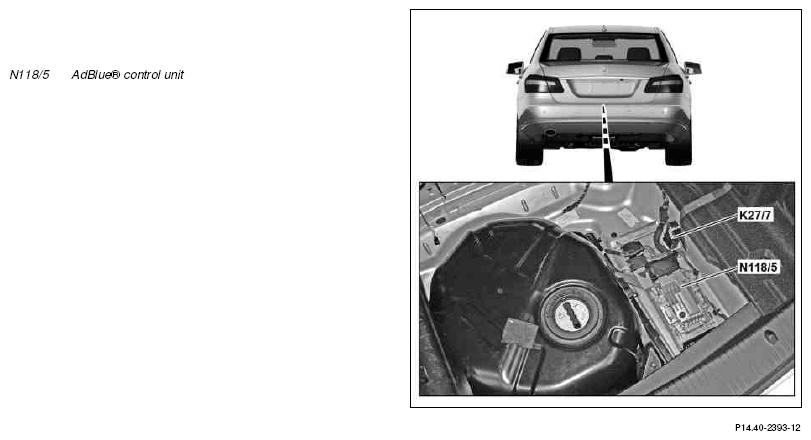

Shown on model 212.0
Location
The AdBlue® control unit is located in the trunk at the bottom right.
Task
The AdBlue® control unit controls the following functions based on a characteristics map:
- AdBlue® delivery
- Injection
- Antifreeze and return flow
Input and output signals
The following input signals are evaluated by the AdBlue® control unit and the corresponding output signals issued:
- Direct input signals
- Direct output signals
- CAN input signals
- CAN output signals
Direct input signals
- Circuit 31
- Circuit 30, over circuit 87 AdBlue® power supply relay (K27/7)
- Sensor signal from AdBlue® pressure sensor (A103/2b1)
- Fill level sensor full sensor signal (A103/1b2)
- Fill level sensor Reserve sensor signal (A103/1b3)
- Fill level sensor Empty sensor signal (A103/1b4)
- AdBlue® container temperature sensor signal (A103/1b1)
- Detection of the power consumption for diagnosis of the AdBlue® delivery pump (A103/2m1)
Direct output signals
- Power supply circuit 31 for AdBlue® power supply relay
- Common power supply for AdBlue® delivery pump circuit 30 and the AdBlue® switchover valve (A103/2y1)
- Power supply for circuit 31 for AdBlue® delivery pump
- Pulse width modulated (PWM) signal for actuation of the AdBlue® delivery pump
- Control signal circuit 31 for actuation of AdBlue® switchover valve
- PWM signal for actuation of the AdBlue® metering valve (Y129)
- Power supply for the AdBlue® container heating element (A103/1r1)
- Power supply for AdBlue® delivery module heating element (A103/2r1)
- Power supply for AdBlue® pressure line heating element (A103/1r2)
CAN input signals
CDI control unit (N3/9)
- Request for reduction agent injection
- Specification of the reduction agent quantity to be injected
- Power-down period specification for control units
- Diagnosis request
CAN output signals
CDI control unit
- Quantity of reduction agent injected for NOx reduction
- Reduction agent quantity to be injected for cooling the AdBlue® metering valve
- Fill level status in the AdBlue® container
- Requested diagnostic data
AdBlue® delivery
- Feed to the AdBlue® delivery pump to obtain the operating current consumption as a basis for the diagnosis of the AdBlue® delivery pump
- Actuation of AdBlue® delivery pump, to generate a pressure of 5 bar before and during the injection of reduction agent for nitrogen oxide (NOX) reduction. The delivery pressure can be set with the control unit software and may differ according to the particular variant.
- Actuation of the AdBlue® delivery pump to generate a pressure of 5 bar before and during injection of the reduction agent for cooling the AdBlue® metering valve
- Actuation of the AdBlue® metering valve for ventilation of the AdBlue® pressure line when filling the AdBlue® pressure line
Fuel injection
- Actuation of the AdBlue® metering valve during injection of the reduction agent for NOX reduction and for cooling the AdBlue® metering valve
Antifreeze and recycling
- After "circuit 15 ON", the pump is given an initial run (warm-up) if the weather is cold. The initial run serves to remove the friction in cold weather, so that the required compaction can be made available as soon as possible when pressure is requested.
- Actuation of the AdBlue® container heating element to liquefy the AdBlue® reduction agent in the AdBlue® container, which freezes at about -10 °C
- Actuation of the AdBlue® delivery module heating element and AdBlue® pressure line heating element to ensure flowability of the AdBlue® reduction agent (which freezes at about -10 °C) in the AdBlue® feed module (A103/2) and in the pressure line to the AdBlue® metering valve
- Actuation of the AdBlue® delivery pump, the AdBlue® switchover valve and the AdBlue® metering valve to return the AdBlue® reduction agent from the pressure line to the AdBlue® container during power-down of the AdBlue® control unit after "circuit 15 OFF"
The duration of the return flow of the AdBlue® reduction agent and the duration of the pressure line filling depend on the length of the pressure line.
The quantity of reduction agent injected by the AdBlue® metering valve is sent by the AdBlue® control unit over the drive train sensor CAN to the CDI control unit. This quantity is taken into account in the next computation of the quantity of reduction agent by the CDI control unit.
| Designation | Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| AdBlue® control unit (N118/5) | ||||
| Operating voltage | V | Unknown | ||
| Voltage limits | V | Unknown | ||
| Power consumption | mA | Unknown | ||
| Control unit power-down | s | 30 - 200 | ||
| Reverse polarity protection | ||||
| Flash capability/coding capability | ||||
| AdBlue® pressure sensor (A103/2b1) | ||||
| Model | Analog relative pressure sensor | |||
| Power consumption | mA | 10 | ||
| Operating voltage | V | 5 | ||
| "Full" fill level sensor (A1031b2) | ||||
| Resistance between the sensor pins | kΩ | 10 | Not used with AdBlue® | |
| Ω | approx. 300 | Used with AdBlue® | ||
| Fill level | l | 28 - 32 | ||
| Reserve fill level sensor (A103/1b3) | ||||
| Resistance between the sensor pins | kΩ | 10 | Not used with AdBlue® | |
| Ω | ≈300 | Used with AdBlue® | ||
| Fill level | l | 6 | ||
| Empty fill level sensor (A103/1b4) | ||||
| Resistance between the sensor pins | kΩ | 10 | Not used with AdBlue® | |
| Ω | ≈300 | Used with AdBlue® | ||
| Fill level | l | 0 | ||
| AdBlue® container temperature sensor (A103/1b1) | ||||
| Model | NTC resistor (Negative Temperature Coefficient) | |||
| Resistor | kΩ | 55.33 | At -10°C | |
| 12.49 | at 20°C | |||
| 5.33 | at 40°C | |||
| AdBlue® delivery pump (A103/2m1) | ||||
| Operating voltage | V | 12 | ||
| Power consumption | A | < 1 | ||
| Frequency | Hz | 100 | PWM signal (pulse width modulation) | |
| Input resistance | kΩ | 2.35 | ||
| AdBlue® metering valve (Y129) | ||||
| Operating voltage | V | 12 | ||
| Resistor | Ω | approx. 12 | at 20°C | |
| Power consumption | A | <1.5 | ||
| Inductance | mH | 14 | ||
| Pulse of PWM | Hz | 1 - 10 | Normal mode | |
| kHz | 10 | In power-down | ||
| AdBlue® switchover valve (A103/2y1) | ||||
| Operating voltage | V | 12 | ||
| Resistor | Ω | ≈9 | at 20°C | |
| Power consumption | A | < 2 | ||
| Inductance | mH | 16 | ||
| AdBlue® container heating element (A103/1r1) | ||||
| Model | PTC-resistor (Positive Temperature Coefficient) | |||
| Operating voltage | V | 12 | ||
| Power consumption | A | <12 | ||
| Input resistance | kΩ | 2.35 | ||
| AdBlue® pressure line heating element (A103/1r2) | ||||
| Operating voltage | V | 12 | ||
| Power consumption | A | Approx. 10 - 12 | Dependent on the pressure line length | |
| Resistor | Ω | Approx. 1.0 - 2.5 | Dependent on the pressure line length | |
| AdBlue® delivery module heating element (A103/2r1) | ||||
| Model | PTC resistor | |||
| Operating voltage | V | 12 | ||
| Power consumption | A | < 5 | ||
| Input resistance | kΩ | 2.35 |
| Wiring diagram of AdBlue control unit | N118/5 Model 204.9 | PE14.40-P-2101-97FAA | |
| N118/5 Model 212 (except 212.098/298) | PE14.40-P-2101-97DAA |
