Remove/install seat occupancy recognition sensor - AR91.60-P-0720CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218
MODEL 463.202/236/237 up to model year 2013 as of model year 2010,/model refinement package 2012
MODEL 463.222/270/271/303/340/341 As of model year 2010
MODEL 463.306/336
MODEL 463.346 up to model year 2013/FACELIFT 2012

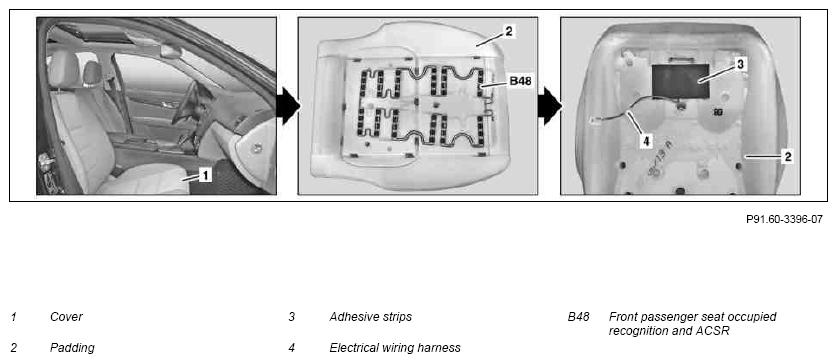

Shown on model 204.052
| Remove/install | |||
| 1 | Remove cover (1) from front passenger seat cushion | MODEL 204, 207, 212, 218 Remove/install front seat cushion cover |
AR91.18-P-1800CW |
| Remove/install front seat cushion cover MODEL 463 | AR91.18-P-1800GP | ||
| 2 | Remove adhesive strip (3) | ||
| 3 | Guide electrical wiring harness (4) through padding (2) | ||
| 4 | Remove front passenger seat occupied recognition and g] (B48) | ||
| 5 | Install in the reverse order | ||
| 6 | Perform function test with diagnostic system | ||
| AD00.00-P-2000-04A | |||
Weight class 0 Front passenger seat unoccupied Weight class 3 Front passenger seat occupied If the front passenger seat (single seat) is occupied by a test person >48 kg, the actual value of the seat occupancy recognition must change from 0= front passenger seat unoccupied, to 3= front passenger seat occupied. |
