Remove/install DVD player paneling - AR82.60-P-7505-01EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

Removing

Carefully slide rear seat cushion (1) at right side to side, push padding in vicinity of DVD player (2) paneling to side and release catch hooks (4) of DVD player (2) paneling.
Ensure that the catch hooks (4) are not damaged, otherwise the DVD player (2) paneling must be replaced.

The catch hooks (4) are engaged in the carrier (3) of the DVD player (A40/4) (arrows A).

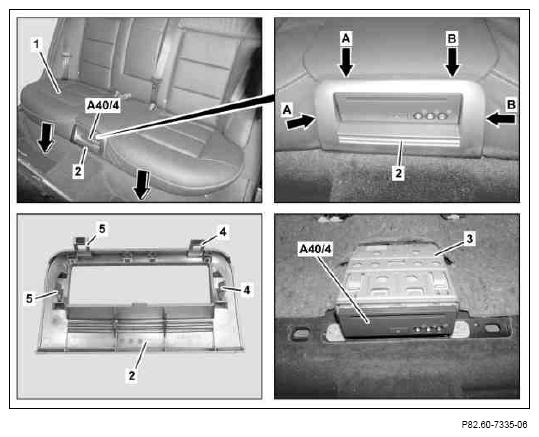

Fig 1: DVD Player Paneling Remove/Install Components
Courtesy of MERCEDES-BENZ USA
Carefully slide rear seat cushion (1) at left side to side, push padding in vicinity of DVD player (2) paneling to side and release catch hooks (5) of DVD player (2) paneling.
Ensure that the catch hooks (5) are not damaged, otherwise the DVD player (2) paneling must be replaced.

The catch hooks (5) are engaged in the carrier (3) of the DVD player (A40/4) (arrows B).
Remove DVD player (2) paneling evenly towards the front from the carrier (3) of the DVD player (A40/4).
Install
Engage rear seat cushion (1) in direction of arrow.
Slide DVD player (2) paneling evenly onto carrier (3) of DVD player (A40/4) and engage catch hooks (4, 5).
