Remove/install rear backrest angle switch - AR91.29-P-1772ES
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.2, 218.9

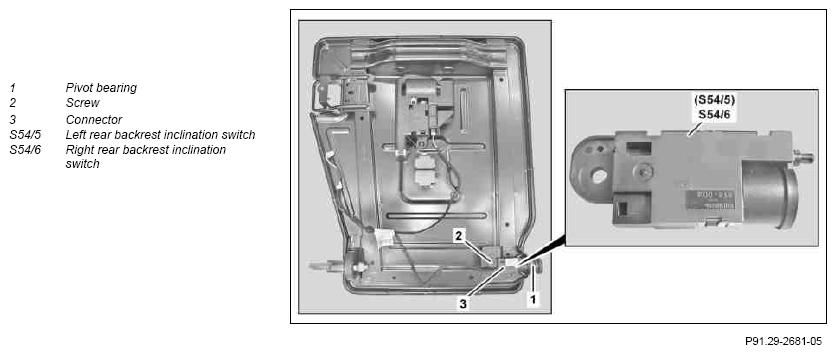

Shown on right rear seat backrest, with seat cover and padding removed
| Remove/install | |||
| 1.1 | Release cover with padding in vicinity of left rear backrest inclination switch (S54/5) enough for the left rear backrest inclination switch (S54/5) to be removed | ||
| MODEL 212.2 | AR91.18-P-1874CW | ||
| MODEL 218.9 | AR91.18-P-1874ELX | ||
| 1.2 | Release cover with padding in vicinity of right rear backrest inclination switch (S54/6) enough for the right rear backrest inclination switch (S54/6) to be removed | ||
| MODEL 212.2 | AR91.18-P-1878CW | ||
| MODEL 218.9 | AR91.18-P-1878ELX | ||
| 2 | Disconnect connector (3) | ||
| 3 | Remove bolt (2) | ||
| 4 | Remove left rear backrest inclination switch (S54/5) or right rear backrest inclination switch (S54/6) from pivot bearing (1) | ||
| 5 | Install in the reverse order |
