Remove/install rear backrest angle switch - AR91.29-P-1772CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/3, 212.0, 218.3 with CODE (287) Through-loading feature except CODE (P98) Black Series

MODEL 207.3

MODEL 204.3 with CODE (224) Design individual seats in rear

Shown on model 204.0, on left rear seat backrest

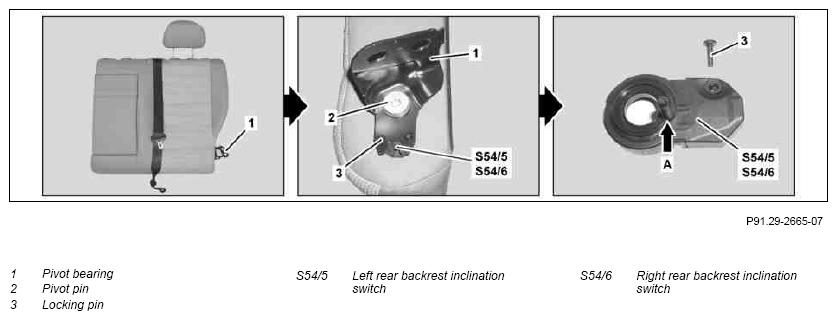

Fig 1: Rear Backrest Angle Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left or right rear backrest	Model 204.0, 212.0 with code (287) Through-loading feature	AR91.12-P-1720CW
		Model 204.3 with code (287) Through-loading feature, 207.3	AR91.12-P-1720EC
		Model 218.3 with code (287) Through-loading feature	AR91.12-P-1720EL
2	Remove pivot pin (2) with pivot bearing (1) and left rear backrest inclination switch (S54/5) or right rear backrest inclination switch (S54/6)	Check that guide pin (arrow A) of left rear backrest inclination switch (S54/5) or right rear backrest inclination switch (S54/6) is correctly seated in the backrest frame.
2			*BA91.12-P-1004-03I
3	Remove locking pin (3)
4	Remove left rear backrest inclination switch (S54/5) or right rear backrest inclination switch (S54/6) from the pivot bearing (1)	Check that left rear backrest inclination switch (S54/5) or right rear backrest inclination switch (S54/6) is correctly seated in the pivot bearing (1).
5	Install in the reverse order

REAR SEATS

Number	Designation		Model 204	Model 207	Model 212
BA91.12-P-1004-03I	Pivot pin to backrest frame	Nm	37	37	37

REAR SEATS

Number	Designation		Model 218
BA91.12-P-1004-03I	Pivot pin to backrest frame	Nm	37
