Remove/install multicontour seat or dynamic seat air cushion at front seat cushion - AR91.25-P-1748EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE (409) Left/right front multicontour seat with CODE (432) Left and right dynamic multicontour seat
MODEL 463.222/270/271/303/340/341 with CODE (SM7) Left front multicontour seat with CODE (SM8) Front passenger multicontour seat as of model year 2010
MODEL 463.306/336 with CODE (SM7) Left front multicontour seat with CODE (SM8) Front passenger multicontour seat
MODEL 463.202/236/237 with CODE (SM7) Left front multicontour seat with CODE (SM8) Front passenger multicontour seat up to model year 2013/model refinement package 2012
MODEL 463.346 with CODE (SM7) Left front multicontour seat with CODE (SM8) Front passenger multicontour seat up to model year 2013/model refinement package 2012
| Remove/install | |||
| 1 | Remove cover of front seat cushion | Model 212 | AR91.18-P-1800CW |
| Model 463 | AR91.18-P-1800GP | ||

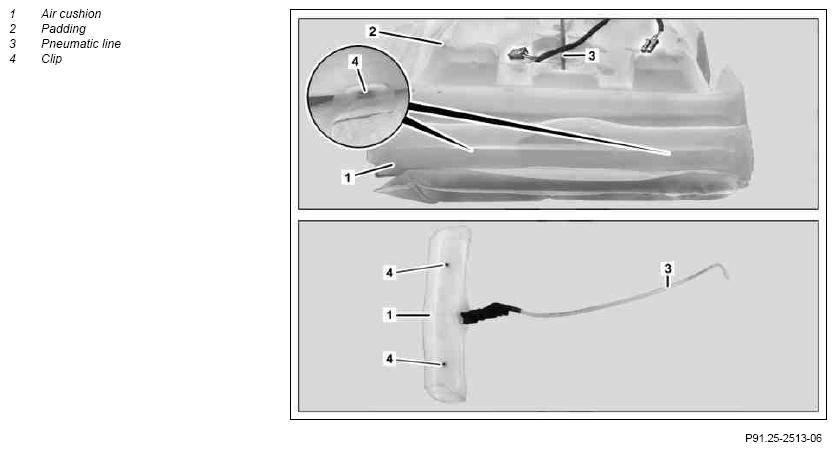

| 2 | Unclip clips (4) at padding (2) | ||
| 3 | Guide pneumatic line (3) through padding (2) and remove air cushion (1) | ||
| 4 | Install in the reverse order |
