Remove/install locking mechanism for folding rear seat backrest - AR91.12-P-1730CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/3, 212.0, 218.3 with CODE (287) Through-loading feature except CODE (P98) Black Series
MODEL 207.3
MODEL 204.3 with CODE (224) Design individual seats in rear
Shown on model 204.0

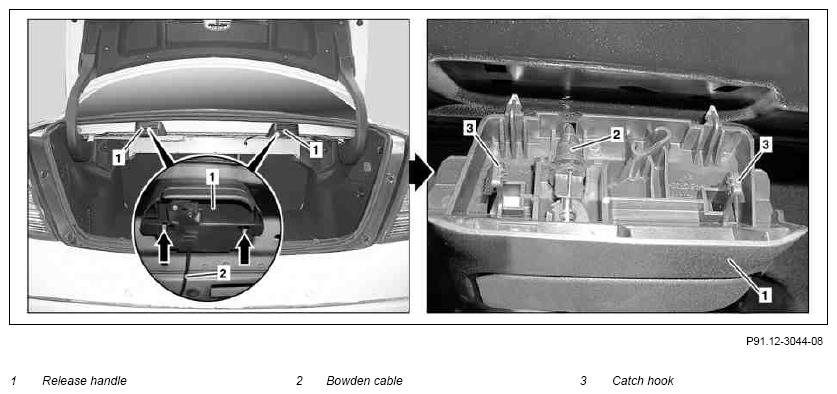

Fig 1: Locking Mechanism For Folding Rear Seat Backrest Remove/Install Components - Shown On Model 204.0 (1 Of 2)

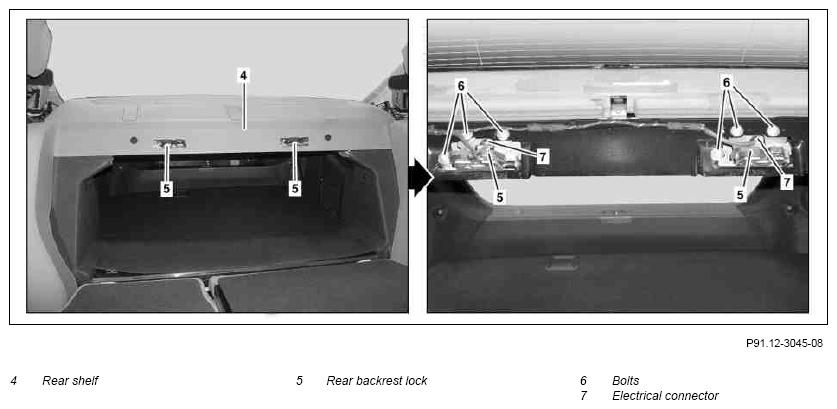

Fig 2: Locking Mechanism For Folding Rear Seat Backrest Remove/Install Components - Shown On Model 204.0 (2 Of 2)
| Remove/install | |||
| 1 | Release rear backrest and fold forward | ||
| 2 | Press catch hooks (3) inwards through large openings (arrows) in release handle (1) and remove left and right release handle (1) | ||
| 3 | Unhook Bowden cable (2) from release handle (1) | ||
| 4 | Remove rear shelf (4) | Model 204.0 Model 204.3 |
AR68.30-P-4580CW |
| Model 207.3 | AR68.30-P-4580EC | ||
| Model 212 Model 218.3 |
AR68.30-P-4580EW | ||
| 5 | Remove bolts (6) | *BA91.12-P-1002-03I | |
| 6 | Disconnect electrical connector (7) | ||
| 7 | Unclip omega clips on the Bowden cable (2) and remove omega clips | Model 212, 218.3 | |
| 8 | Unhook Bowden cable (2) from Specification metal lugs on body | Model 204.0/3, 207.3 | |
| 9 | Remove rear backrest lock (5) with Bowden cable (2) | ||
| 10 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 204 | Model 207 | Model 212 | |
|---|---|---|---|---|---|
| BA91.12-P-1002-03I | Bolt, backrest lock to rear shelf | Nm | 20 | 20 | 20 |
REAR SEATS
| Number | Designation | Model 218 | |
|---|---|---|---|
| BA91.12-P-1002-03I | Bolt, backrest lock to rear shelf | Nm | 20 |
