Remove/install integrated child seat in rear seat - AR91.20-P-1850CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2/9 with CODE 248 (Rear seat with integrated child seat)

MODEL 205.0/2 with CODE 248 (Rear seat with integrated child seat)

MODEL 212 with CODE 248 (Rear seat with integrated child seat) without CODE 224 (Rear individual seat design)

MODEL 246 with CODE 248 (Rear seat with integrated child seat) without CODE U57 (EASY-VARIO-System)

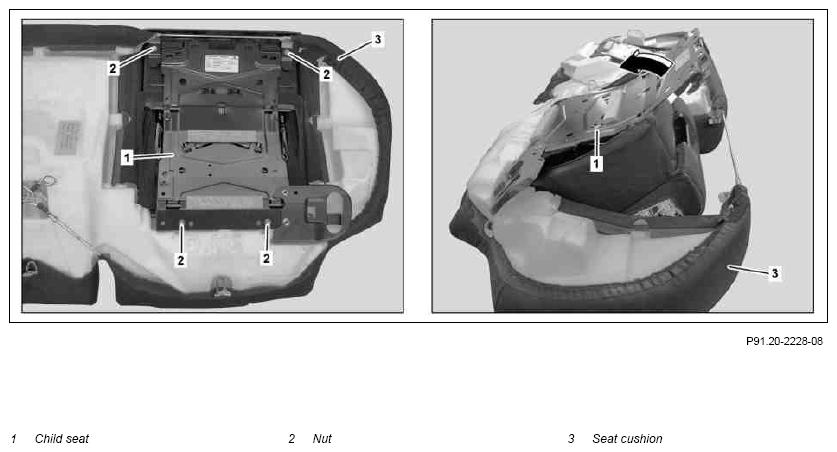

Shown on left side of seat cushion (3) on MODEL 204

Fig 1: Integrated Child Seat In Rear Seat Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion (3)	MODEL 205.0/2 with CODE 248 (Rear seat with integrated child seat)	AR91.12-P-1020LWA
		MODEL 246 with CODE 248 (Rear seat with integrated child seat) without CODE U57 (EASY-VARIO-System)	AR91.12-P-1020NKD
		MODEL 204.0/2/9 with CODE 248 (Rear seat with integrated child seat) MODEL 212 with CODE 248 (Rear seat with integrated child seat) without CODE 224 (Rear individual seat design)	AR91.12-P-1020CW
2	Place seat cushion (3) onto a suitable protective base	The child seat (1) to be removed must remain folded up.
3	Unscrew nuts (2) on left or right child seat (1)
4	Remove child seat (1), from underside of seat cushion (3), in direction of arrow and out of the seat cushion (3)
5	Install in the reverse order
