Remove/install dynamic seat control unit - AR91.25-P-1800EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 432 (Left and right dynamic multicontour seat)
MODEL 218 with CODE 432 (Left and right dynamic multicontour seat)
Shown on model 212.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and carry out initial startup of left front active multicontour seat control unit (N32/19) or right front active multicontour seat control unit (N32/22) | When replacing the left front active multicontour seat control unit (N32/19) or the right front active multicontour seat control unit (N32/22). | |
| AD00.00-P-2000-04A | |||
| 2 | Adjust left or right front seat forward and move backrest into upright position | ||
| 3.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 212 with CODE 432 (Left and right dynamic multicontour seat) without CODE 889 (KEYLESS-GO) MODEL 218 with CODE 432 (Left and right dynamic multicontour seat) without CODE 889 (KEYLESS-GO) |
|
| 3.2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 212 with CODE 432 (Left and right dynamic multicontour seat) without CODE 889 (KEYLESS-GO) MODEL 218 with CODE 432 (Left and right dynamic multicontour seat) without CODE 889 (KEYLESS-GO) |
|

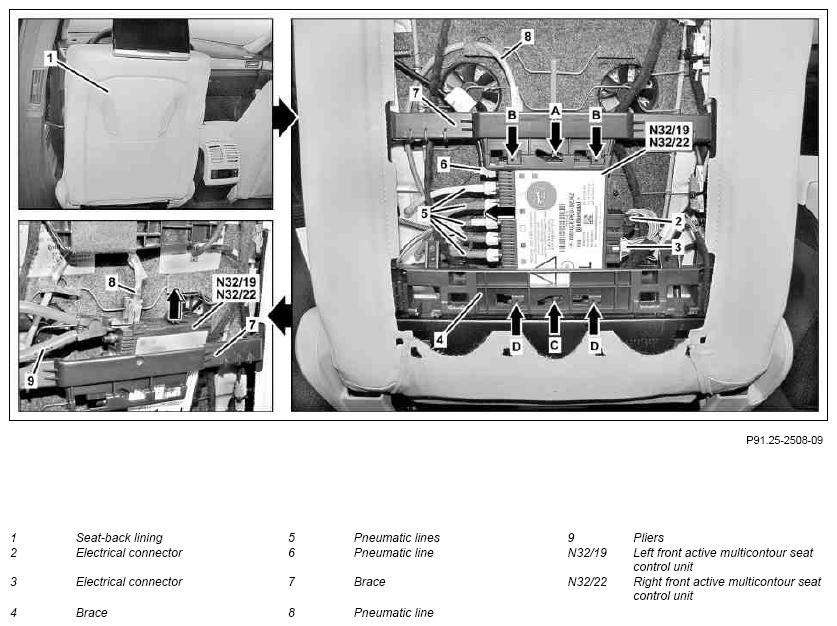

| 4 | Remove seat-back lining (1) | AR91.10-P-1910CW | |
| 5 | Disconnect electrical connections (2, 3) | ||
| 6 | Disconnect pneumatic lines (5) with pliers (9) | Figure | |
| 7 | Release catch hooks (arrows A, C) and guide supports (arrows B, D) of the left front active multicontour seat control unit (N32/19) or the right front active multicontour seat control unit (N32/22) out of braces (4, 7) | ||
| 8 | Disconnect pneumatic line (6) with pliers (9) | Figure | |
| 9 | Lift left front active multicontour seat control unit (N32/19) or right front active multicontour seat control unit (N32/22) and disconnect pneumatic line (8) with pliers (9) | Figure | |
| 10 | Remove left front active multicontour seat control unit (N32/19) or right front active multicontour seat control unit (N32/22) toward top | ||
| 11 | Install in the reverse order |
