Remove/install armrest at rear seat backrest - AR91.12-P-1745CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0 except CODE (287) Through-loading feature

MODEL 212.0/1 except CODE (224) Rear individual seat design except CODE (282) Ski bag (through-loading feature) except CODE (287) Through-loading feature

MODEL 218.3 except CODE (287) Through-loading feature

Shown on model 212.0

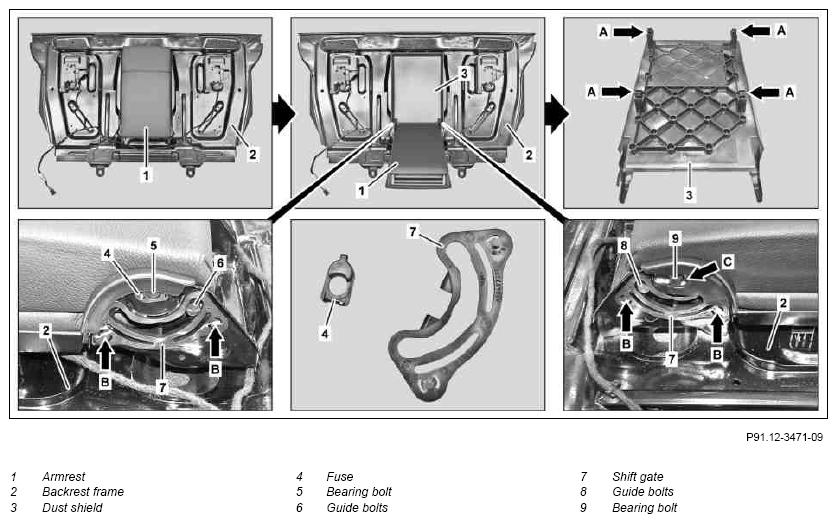

Fig 1: Rear Seat Backrest Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover with padding at rear seat backrest	Cover remains on padding.
		Model 204, 212	AR91.18-P-1870CW
		Model 218	AR91.18-P-1870EL
2	Fold out armrest (1)
3	Unclip dust shield (3) with catch hooks (arrows A) from backrest frame (2), lift this and remove from supports of backrest frame (2) for armrest (1)	Ensure that retaining bracket (arrow C) of dust shield (3) is seated correctly in bearing pin (9).
4	Unclip retainer (4) from bearing pin (5) and from support of backrest frame (2)	Risk of breakage of retainer (4). Ensure that retainer (4) is seated correctly in bearing pin (5) and in support of backrest frame (2).
5	Press expanding pins (arrows B) from left and right gate (7)
6	Remove left and right gate (7)	Ensure that left gate and right gate (7) are seated correctly in corresponding support of backrest frame (2).
7	Remove armrest (1) from supports of backrest frame (2)
8	Install in the reverse order
