Remove and install cover on rear seat cushion - AR91.18-P-1850EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 except CODE (224) Rear individual seat design except CODE (248) Rear seat with integrated child seat

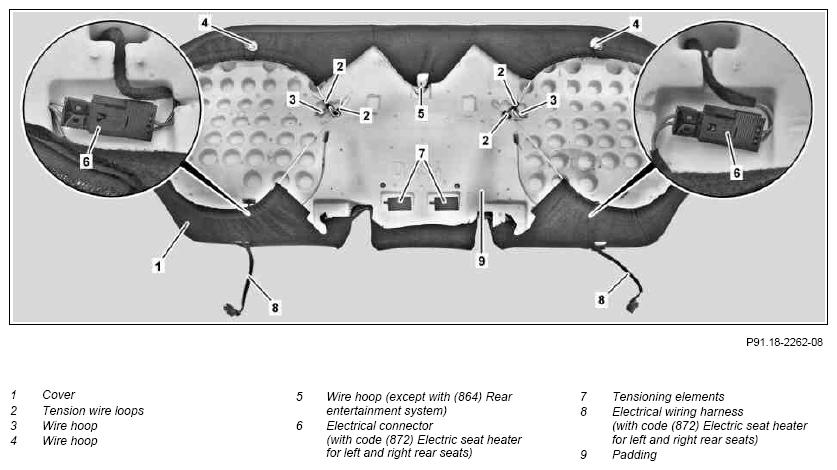

Shown without code (864) Rear entertainment system

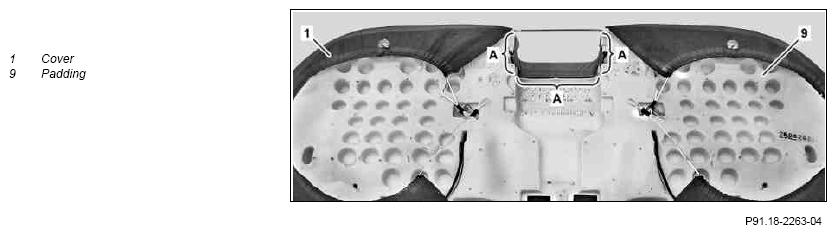

Shown with code (864) Rear entertainment system
| Remove/install | |||
| 1 | Remove rear seat cushion | AR91.12-P-1020CW | |
| 2 | Unhook left and right tension wire loops (2) from respective wire hoop (3) | ||
| 3 | Lift seat covering (1) over wire hoops (4, 5) | ||
| 4 | Unclip cover (1) in area A | Vehicles with code (864) Rear entertainment system | |
| 5 | Disconnect left and right electrical connectors (6) | Vehicles with code (872) Electric seat heater for left and right rear seats | |
| 6 | Guide tensioning elements (7) through padding (9) | ||
| 7 | Slip cover (1) over padding (9) | ||
| 8 | Guide left and right electrical wiring harness (8) through cover (1) | Vehicles with code (872) Electric seat heater for left and right rear seats | |
| 9 | Unclip staple wires from padding (9) | ||
| 10 | Remove cover (1) from padding (9) | ||
| 11 | Install in the reverse order |
