Attach vehicle identification number - AR60.00-P-0800CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 156, 176, 204.0/2/9, 207, 212, 218, 242, 246

Shown on model 204.0

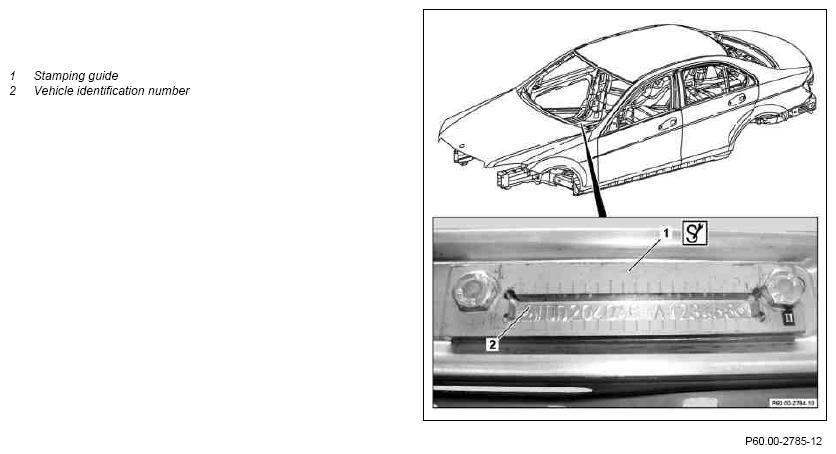

Fig 1: Stamp Guide & Vehicle Identification Number - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

	Vehicle identification number		AH60.00-P-0800-02B
	Vehicle identification number		AH60.00-P-0800-02A
	Product liability, trademark and traffic laws		AH60.00-P-0800-01Z
1	Install stamping guide (1)	MODEL 117, 156, 176, 204.0/2, 207, 242, 246	AR60.00-P-0800-01CW
		MODEL 204.9, 212, 218	AR60.00-P-0800-01WX
		Stamping guide	Figure
2	Stamp in vehicle identification number (2)	MODEL 117, 156, 176, 204.0/2, 207, 242, 246	AR60.00-P-0800-02CW
		MODEL 204.9, 212, 218	AR60.00-P-0800-02WX
		Zinc dust paint suitable for spot welding	*BR00.45-Z-1001-07A
		Stamping guide	Figure
		Stamping symbols set	Fig 2
		Steel stamping letters set	Fig 3
3	Cross out vehicle identification number (2) and stamp into spare field	Only if vehicle identification number (2) was punched in incorrectly previously.
		MODEL 117, 156, 176, 204.0/2, 207, 242, 246	AR60.00-P-0800-05CW
		MODEL 204.9, 212, 218	AR60.00-P-0800-05WX
		Zinc dust paint suitable for spot welding	*BR00.45-Z-1001-07A
		Stamping guide	Figure
		Stamping symbols set	Fig 2
		Steel stamping letters set	Fig 3

Fig 2: Identifying Stamping Symbols Set (140 589 26 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Steel Stamping Letters Set (140 589 26 63 05)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Stamping Guide (171 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42
