Crossing out vehicle identification number and restamp in spare field - AR60.00-P-0800-05WX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.9, 212, 218

Fig 1: Identifying Stamping Guide (171 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Set Of Number Stamps (140 589 26 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Set Of Letter Stamps (140 589 26 63 05)

Courtesy of MERCEDES-BENZ USA

Cross out erroneous vehicle identification number with letter stamp "X" in stamping field (2).
The required position for the punch field (1) (spare field) can be determined by turning the window plate (5).
Turn window plate (5) to spare field.
Observe position (l) of window plate!
Start with "Mercedes star" symbol stamp at far left in window plate (5).
The tip of the mercedes star must point upward.
Then position letter stamp "W" with left edge on first increment on scale of window plate (5) in stamping field (1) and stamp in.
Move forward one increment mark on the scale in the window plate (5) with each subsequent letter stamp until the complete vehicle identification number and final Mercedes star have been stamped in the crossmember below the right driver seat.
The overall width of the vehicle identification number is 106 mm (±4).
Remove stamping guide.

Fig 4: Turning Window Plate

Courtesy of MERCEDES-BENZ USA

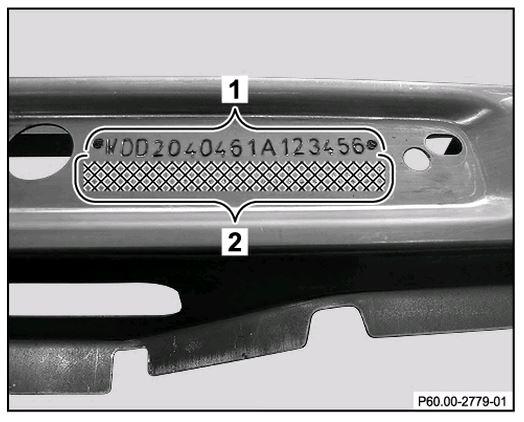

Fig 5: Crossing Out Erronious Identification Number

Courtesy of MERCEDES-BENZ USA
