Remove/install supporting joint on wheel carrier - AR35.20-P-0116-01CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212, 218, 231

Fig 1: Identifying Extraction And Insertion Tool (202 589 00 43 00)
G10241297Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Insertion Tool (204 589 02 43 00)
G10241298Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Antifriction paste, rubber parts 2.5 kg, DB supply specification 6867.00 A 000 989 01 60

Removing

  1. Pull supporting joint (7a) using SPECIAL TOOL extraction and insertion tool (01) out of wheel carrier (7).
  2. SPECIAL TOOL Remove extraction and insertion tool (01) with supporting joint (7a).

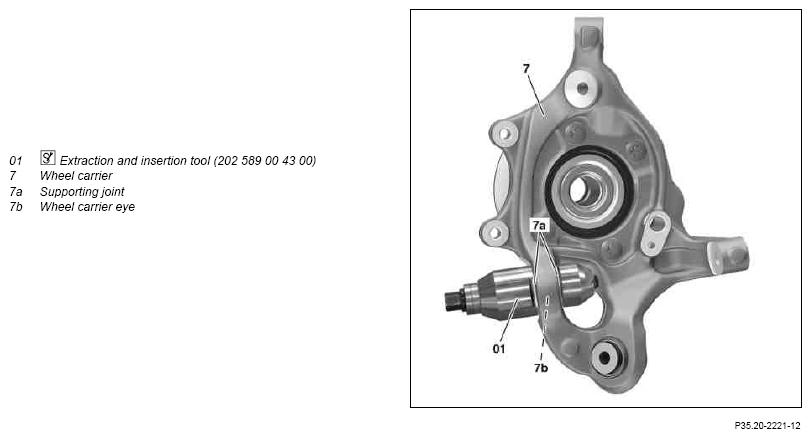

    Fig 3: Supporting Joint On Wheel Carrier Remove/Install Components
    G10241299Courtesy of MERCEDES-BENZ USA

    Install

  3. SPECIAL TOOL Attach insertion tool (02) with supporting ball joint (7a) to wheel carrier (7).

    IMPORTANT Coat lubricant paste onto rubber boot of supporting ball joint (7a), then slide on thrust piece of SPECIAL TOOL insertion tool (02) with a rotary movement.

    NOTES Position rubber boot of supporting ball joint (7a) fully in thrust piece, otherwise the rubber boot may be damaged during assembly.

  4. Install supporting joint (7a) using SPECIAL TOOL insertion tool (02) in direction of travel into wheel carrier (7).

    IMPORTANT The supporting joint (7a) is correctly pulled in when it is seated in the center of the wheel carrier eye (7b).

    Fig 4: Installing Supporting Joint Using Insertion Tool
    G10241300Courtesy of MERCEDES-BENZ USA
