Remove/install spring control arm rubber mount - AR35.20-P-0114-01CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212, 218

Fig 1: Identifying Press Out/In Tool (220 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction And Insertion Tool (204 589 04 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Press (202 589 04 43 10)

Courtesy of MERCEDES-BENZ USA

Removing

The stroke of the press (010) is very low, because of this the press (010) must be released several times, the spindle (a) of the bracket (01) must be adjusted and the press (010) operated again.

Install sleeve (001) on bracket (01).
Attach bracket (01) to rear axle carrier (4) and rubber mount (6l) using sleeve (001), thrust piece (04) and press (010).
Press rubber mount (6l) out of rear axle carrier (4).

Fig 4: Spring Control Arm Rubber Mount Remove/Install Components
Courtesy of MERCEDES-BENZ USA

Install
Install sleeve (02) on bracket (01).
Attach bracket (01) to rear axle carrier (4) and rubber mount (6l) using sleeve (02), thrust piece (07) and press (010).
Press rubber mount (6l) into rear axle carrier (4).

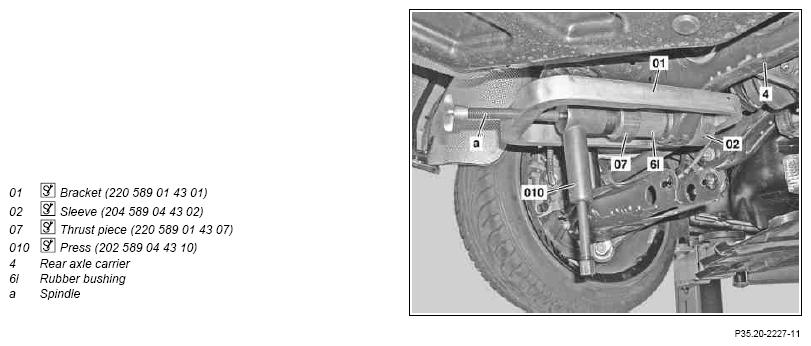

Fig 5: Pressing Rubber Mount Into Rear Axle Carrier
Courtesy of MERCEDES-BENZ USA
