Drain oil from rear axle differential - AR35.31-P-0520-06CWC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 212 with CODE 700 (Technology Local Content China)
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 204, 212.1 with code 700 (Technology Local Content China) | |
|---|---|---|---|
| BA35.31-P-1003-02H | Drain screw to rear axle differential | Nm | 60 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1046-04A | Loctite 7063 cleaning spray (150 ml) | A 001 986 71 71 10 |
| BR00.45-Z-1102-02A | Loctite 272 sealing adhesive | Henkel AG & Co. KGaA |

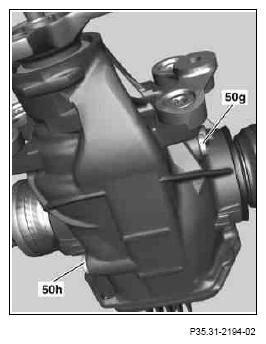

- Clean area surrounding drain screw (50h).
- Unscrew drain screw (50h) and allow all the oil to run out into a suitable container.
- Clean drain screw (50h) and threaded hole in rear axle differential with clean, lintfree rag and cleaning spray.
Cleaning spray must not enter the rear axle differential. Otherwise, the rear axle differential may be damaged.
The drain screw (50h) and threaded hole must be free of oil and dirt. Otherwise, the threads may be damaged and start to leak.
- Apply a drop of sealant to the second lower flank on the drain screw (50h).
- Screw drain screw (50h) immediately into rear axle differential and tighten. Model 204, 212.1 with code 700 (Technology Local Content China)
