Replace rear crankshaft radial sealing ring - AR03.20-P-3063CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 204, 212
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Remove transmission | MODEL 204 | AR27.10-P-0500CV |
| MODEL 212 | AR27.10-P-0500EV | ||
| 2 | Mark the front side of the washer (5) | The washer (5) must be mounted again in the same position. The torque will be falsified otherwise by the ridges caused by the screw/bolts. |
|
| 3 | Remove driven plate (2) | AR03.30-P-8001CMG | |
| 4 | Remove crankshaft radial sealing ring (1) using a suitable tool | AR03.20-P-3063-01AMG | |

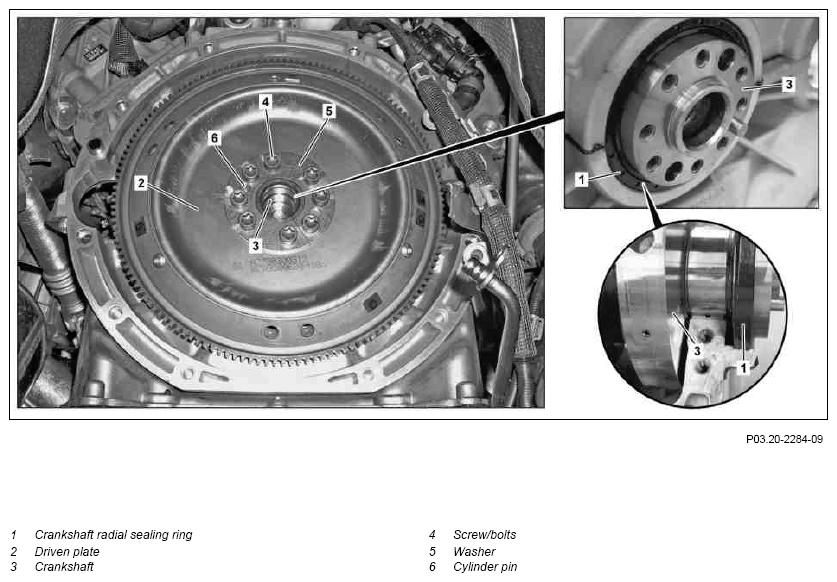

| Figure | |||
| Check | |||
| 5 | Check threaded unions in driven plate (2) | If threaded unions are damaged or loose: ↓ The driven plate (2) must be replaced. |
|
| 6 | Check cylinder pin (6) for damage | ||
| 7 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check engine for leaktightness |
