Remove/install piston rings - AR03.10-P-7311CO

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 204, 207, 212, 218, 222

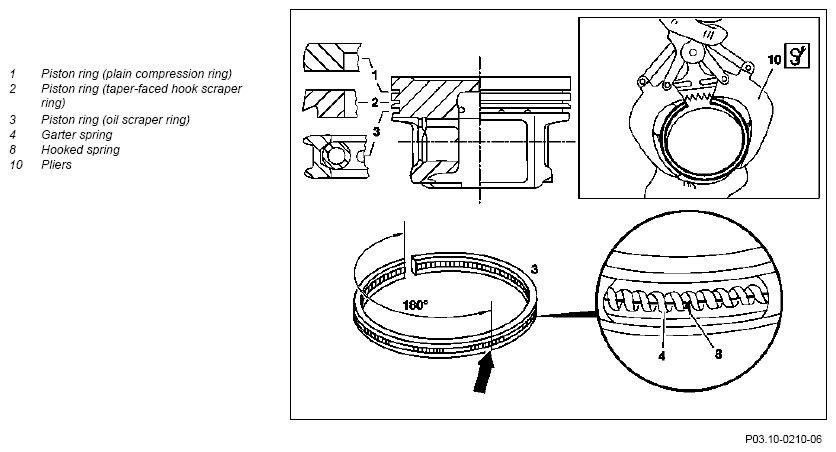

Fig 1: Piston Rings Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Measure vertical clearance

Fig 2: Measuring Piston Rings Vertical Clearance

Courtesy of MERCEDES-BENZ USA

Measure end gap

Fig 3: Measuring Piston Ring End Gap

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove pistons	ENGINE 642 in MODEL 204	AR03.10-P-7021CO
1	Remove pistons	ENGINE 642 in MODEL 207, 212, 218, 222	AR03.10-P-7021SXI
2	Determine side clearance of piston rings (1, 2, 3)	Use feeler gauge.
2	Determine side clearance of piston rings (1, 2, 3)	Piston ring vertical clearance	*BE03.10-P-1003-02B
3	Remove piston rings (1, 2, 3) from piston	Note the installation position of piston rings (1, 2, 3). The lettering "Top" or the name of the manufacturer must point towards the piston crown. Insert hook spring (8) with garter spring (4) offset 180° to the ring gap of the piston ring (3) (arrow). Install piston rings (1, 2) with the ring gaps offset by 120°.
3	Remove piston rings (1, 2, 3) from piston	Pliers	Figure
4	Determine the end gap of the piston rings (1, 2, 3)	Use feeler gauge. Insert respective piston ring (1, 2, 3) into unused area of the cylinder barrel.
4	Determine the end gap of the piston rings (1, 2, 3)	Piston ring end gap	*BE03.10-P-1004-02B
5	Install in the reverse order

TEST SPECIFICATIONS FOR PISTONS

Number	Designation			ENGINE 642
BE03.10-P-1004-02B	Piston ring end gap	Groove 1	mm	0, 40...0, 55
		Groove 2	mm	0, 25...0, 50
		Groove 3	mm	0, 20...0, 40

TEST SPECIFICATIONS FOR PISTONS

Number	Designation			ENGINE 642
BE03.10-P-1003-02B	Piston ring vertical clearance	Groove 1	mm	0, 12...0, 16
		Groove 2	mm	0, 065...0, 110
		Groove 3	mm	0, 03...0, 07

Fig 4: Identifying Pliers (000 589 51 37 00)

Courtesy of MERCEDES-BENZ USA
