Remove/install retaining lock for crankshaft/ring gear - AR03.30-P-5000CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221

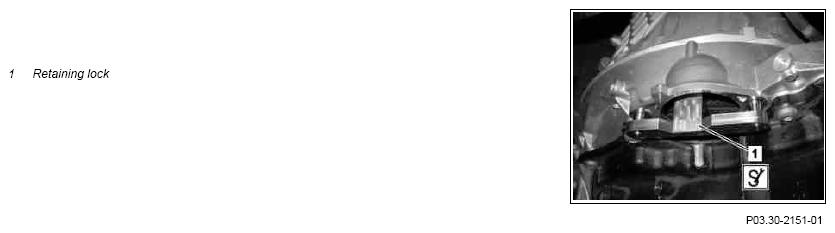

Fig 1: Crankshaft/Ring Gear Retaining Lock

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove starter	ENGINE 651 in MODEL 166, 172, 204, 207, 212 (except 212.098/298), 218, 221	AR15.30-P-7100CD
		ENGINE 651.9 in MODEL 212.098/298	AR15.30-P-7100EH
2	Insert retaining lock (1) into starter opening	If necessary turn engine at the belt pulley/vibration damper in direction of engine rotation until the retaining lock (1) engages in the starter ring gear.
		Retaining lock	Fig 2
3	Install in the reverse order

Fig 2: Identifying Retaining Lock (651 589 02 40 00)

Courtesy of MERCEDES-BENZ USA
