Remove/install flywheel/clutch plate - AR03.30-P-8001-02MM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 152.9, 157, 276, 278, 642.8

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number Designation Engine 152 Engine 157
BA03.30-P-1002-01M Screw/bolt, starter ring gear/drive plate to crankshaft Stage 1 Nm 20 20
Stage 2 Nm 45 45
Stage 3 ° 90 90
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number Designation Engine 276 Engine 278
BA03.30-P-1002-01M Screw/bolt, starter ring gear/drive plate to crankshaft Stage 1 Nm 20 20
Stage 2 Nm 45 45
Stage 3 ° 90 90
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number Designation Engine 642
BA03.30-P-1002-01G Screw/bolt connecting two-mass flywheel/drive plate to crankshaft Stage 1 Nm 45
Stage 2 ° 90
Fig 1: Identifying Retaining Lock (112 589 03 40 00)
G10240705Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Wrench Socket (001 589 65 09 00)
G10240706Courtesy of MERCEDES-BENZ USA

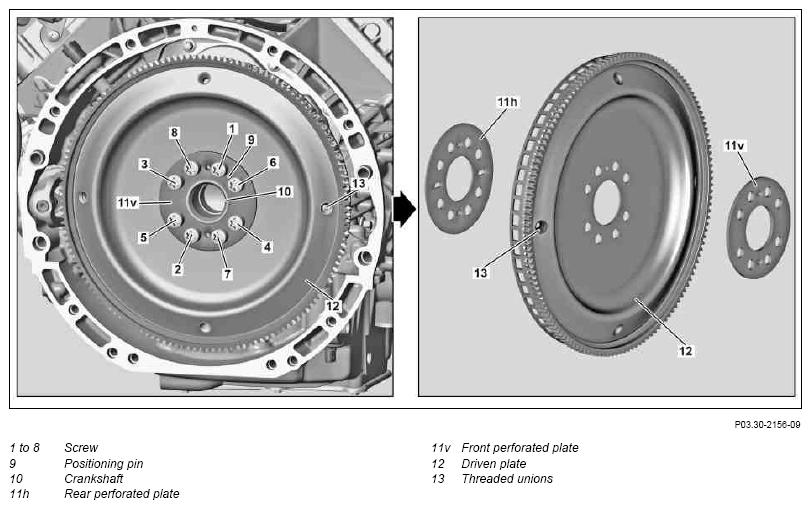

Fig 3: Remove/Install Flywheel/Clutch Plate Components
G10240707Courtesy of MERCEDES-BENZ USA

Detaching

NOTES Do not use any impact wrench/driver or compressed air tool to screw the bolts (1 to 8) in and out. The thread in the crankshaft (10) can get damaged otherwise.

  1. Insert retaining lock for starter ring gear and block engine.

    IMPORTANT If necessary rotate engine at center bolt of crankshaft (10) until the retaining lock latches correctly in the starter ring gear.

  2. Loosen screw/bolts (1 to 8) as per figure in the numerical sequence.
  3. Remove retaining lock.
  4. Remove screw/bolts (1 to 8) and front perforated plate (11v).
  5. Remove drive plate (12)
  6. Remove rear perforated plate (11h).

    Checking

  7. INSPECT Check drive plate (12) for damage.

    IMPORTANT In case of damaged or loose threaded unions (13), drive plate (12) must be replaced.

  8. Check positioning pin (9) on crankshaft (10) and replace if necessary.

    Attaching

    IMPORTANT Bolts (1 to 8) as well as the front and rear perforated plate (11h, 11v) must be replaced after each disassembly.

    NOTESFaulty installation or swapping of the perforated plates (11h, 11v) leads to engine and transmission damage!

    IMPORTANT Observe numerical sequence as per the figure when tightening the screw/bolts (1 to 8).

  9. Position rear perforated plate (11h) on the crankshaft (10).

    IMPORTANT The rear perforated plate (11h) has a disc thickness of 2 mm.

  10. Position drive plate (12) on the crankshaft (10).
  11. Position front perforated plate (11h) on the crankshaft (10).

    IMPORTANT The front perforated plate (11h) has a disc thickness of 3.5 mm.

  12. Screw in bolts (1 to 8) by hand and tighten finger-tight.

    IMPORTANT Tightening of screw/bolts (1 to 8) must take place in four stages according to the numerical sequence shown in the figure.

  13. Insert retaining lock for starter ring gear and block engine.

    IMPORTANT If necessary rotate engine at center bolt of crankshaft (10) until the retaining lock latches correctly in the starter ring gear.

  14. Tighten screw/bolts (1 to 8) as per figure in the numerical sequence to stage 1.

    IMPORTANT Observe correct sequence.

  15. Tighten screw/bolts (1 to 8) as per figure in the numerical sequence to stage 2.

    IMPORTANT Observe correct sequence.

  16. Tighten screw/bolts (1 to 8) as per figure in the numerical sequence to stage 3.

    Only on vehicles with gasoline engine.

    IMPORTANT Observe correct sequence.

  17. Remove retaining lock.
